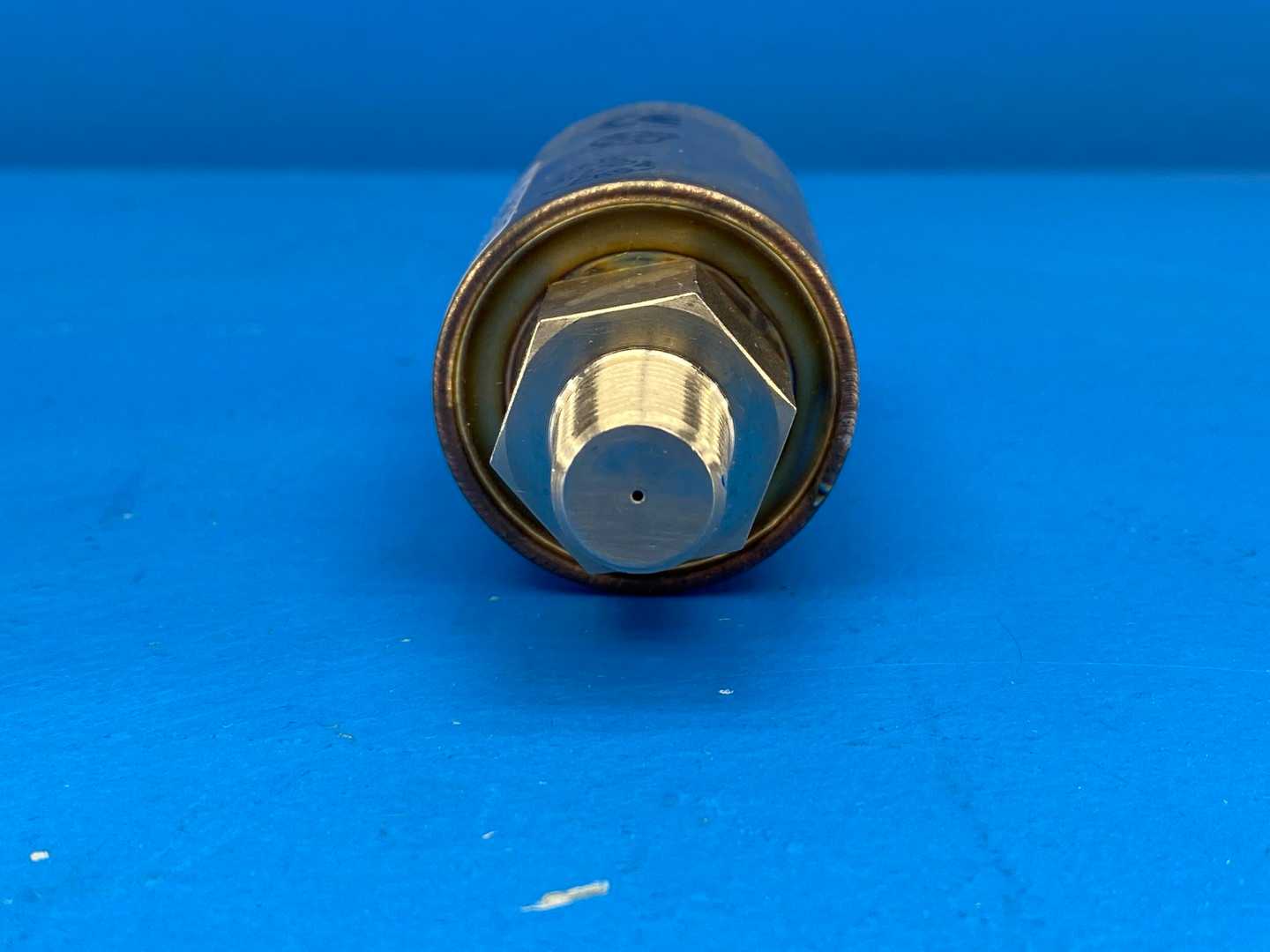

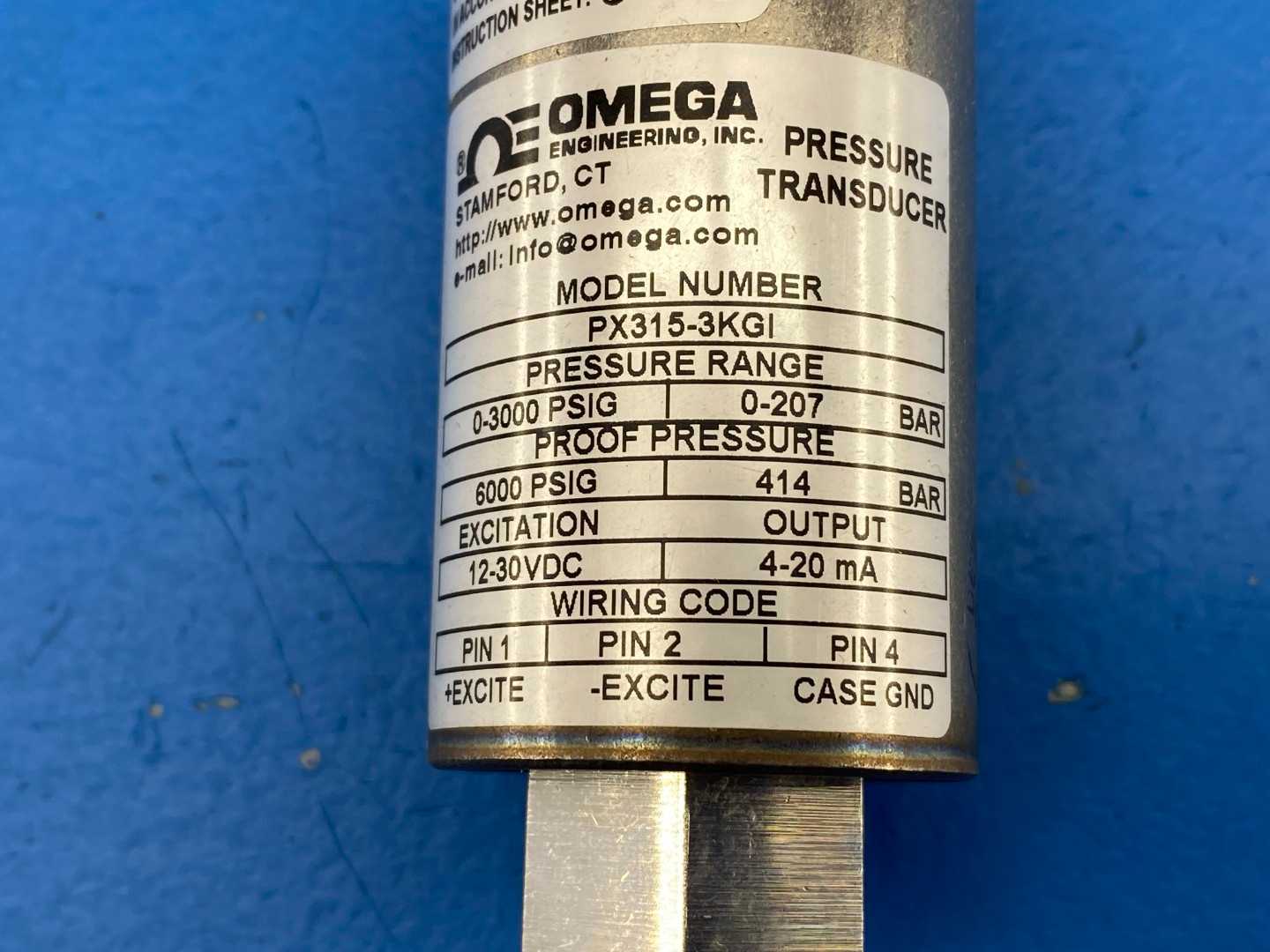

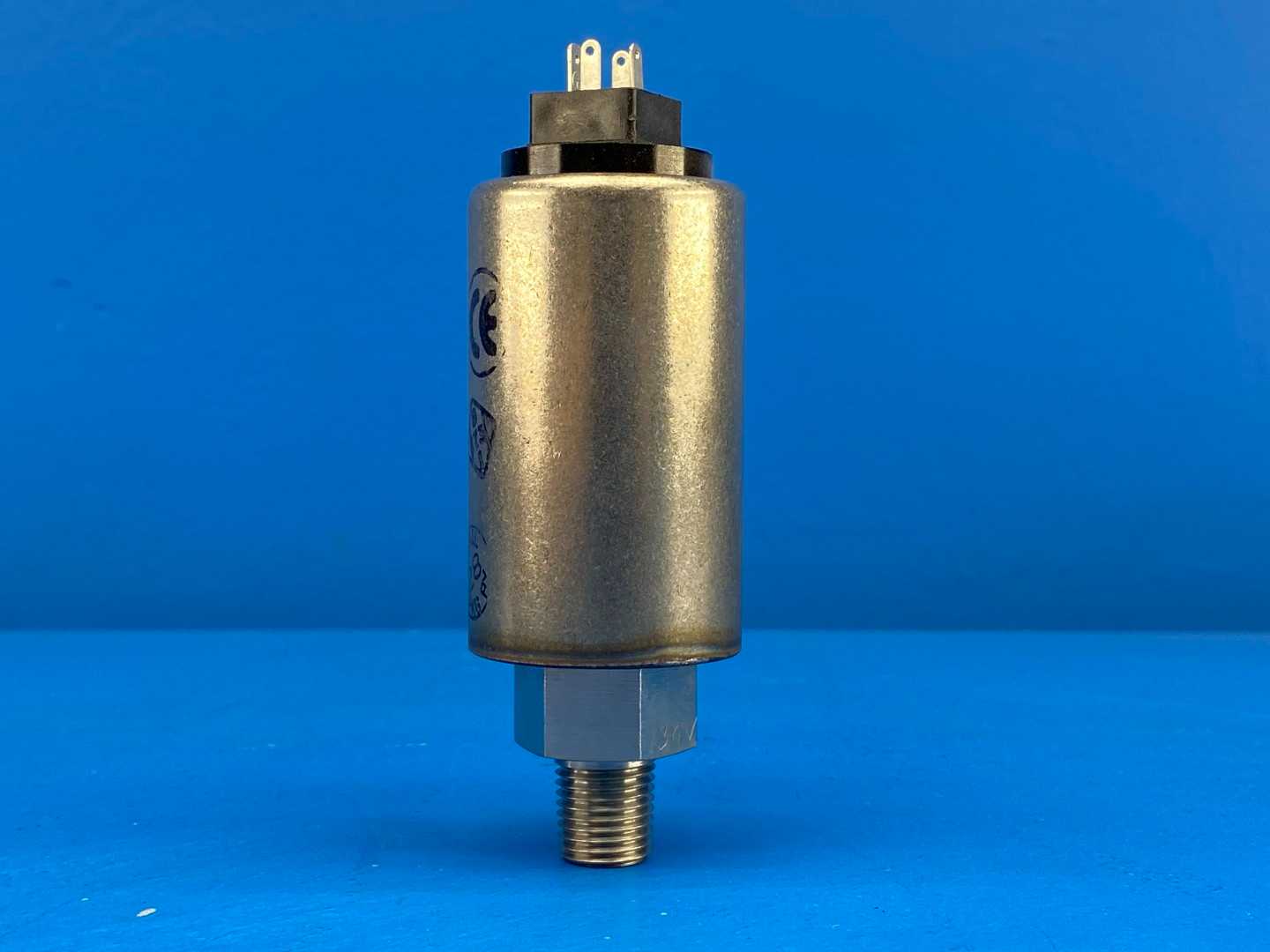

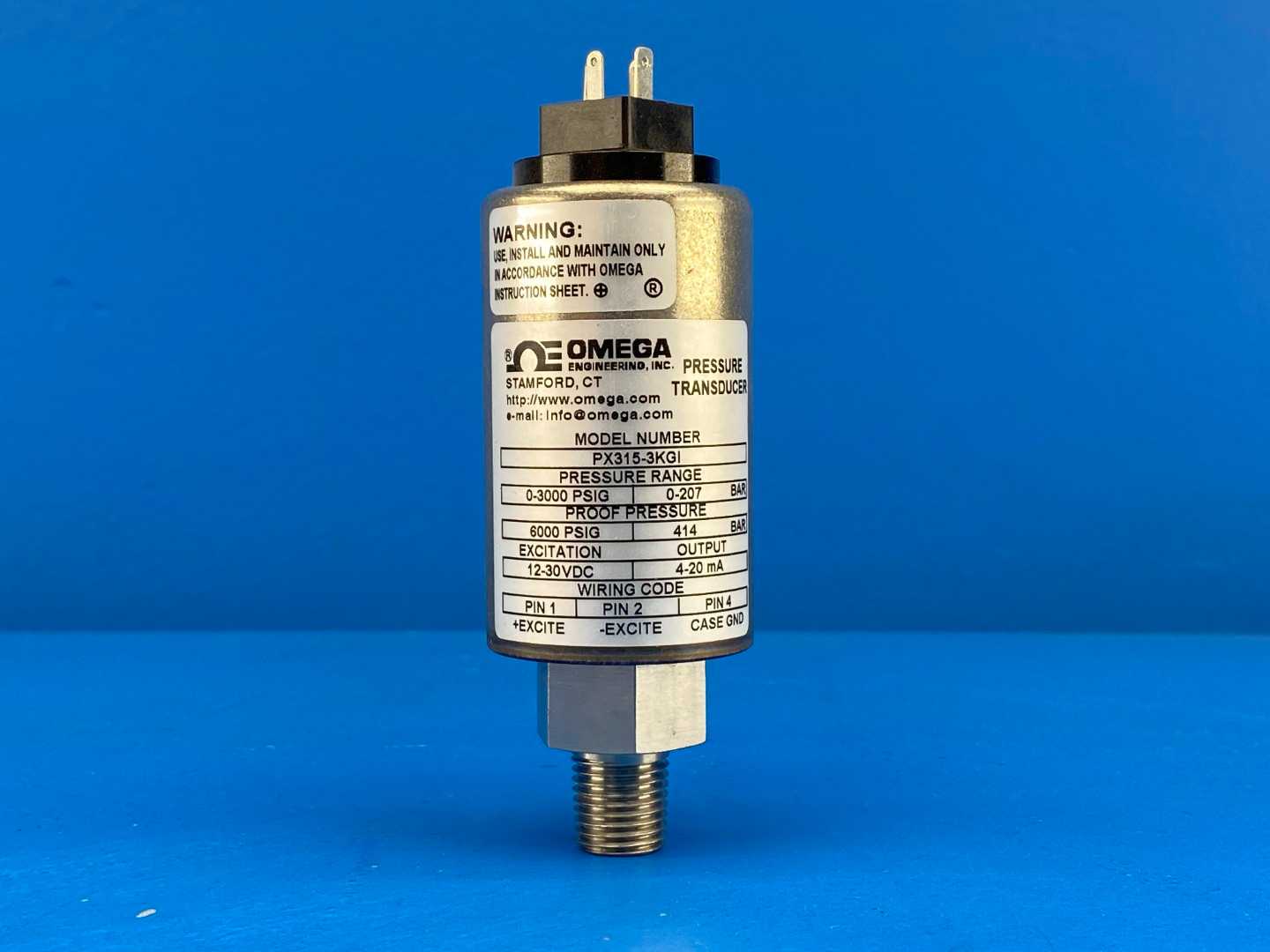

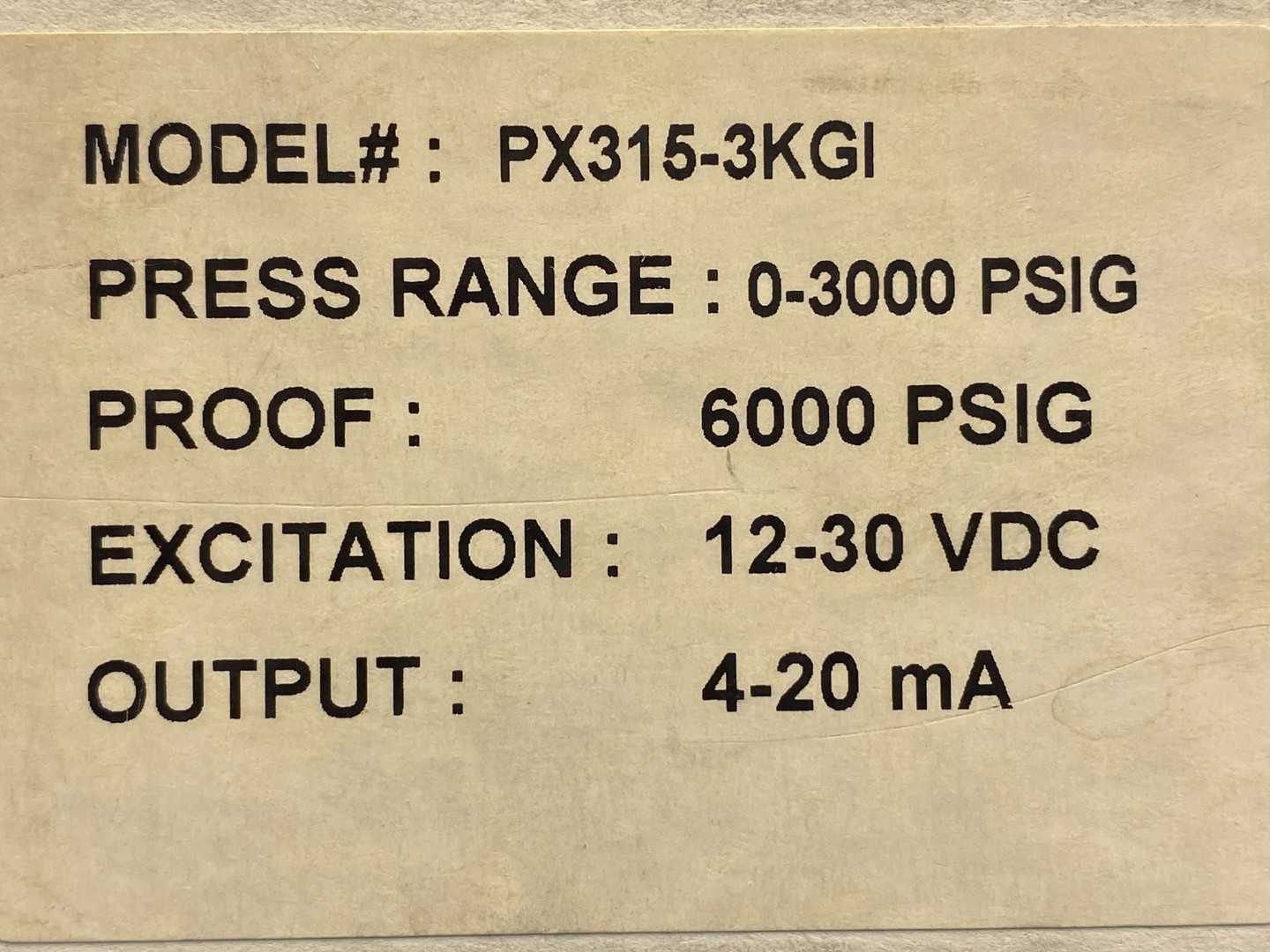

Omega PX315-3KGI Pressure Transducer/Sensor

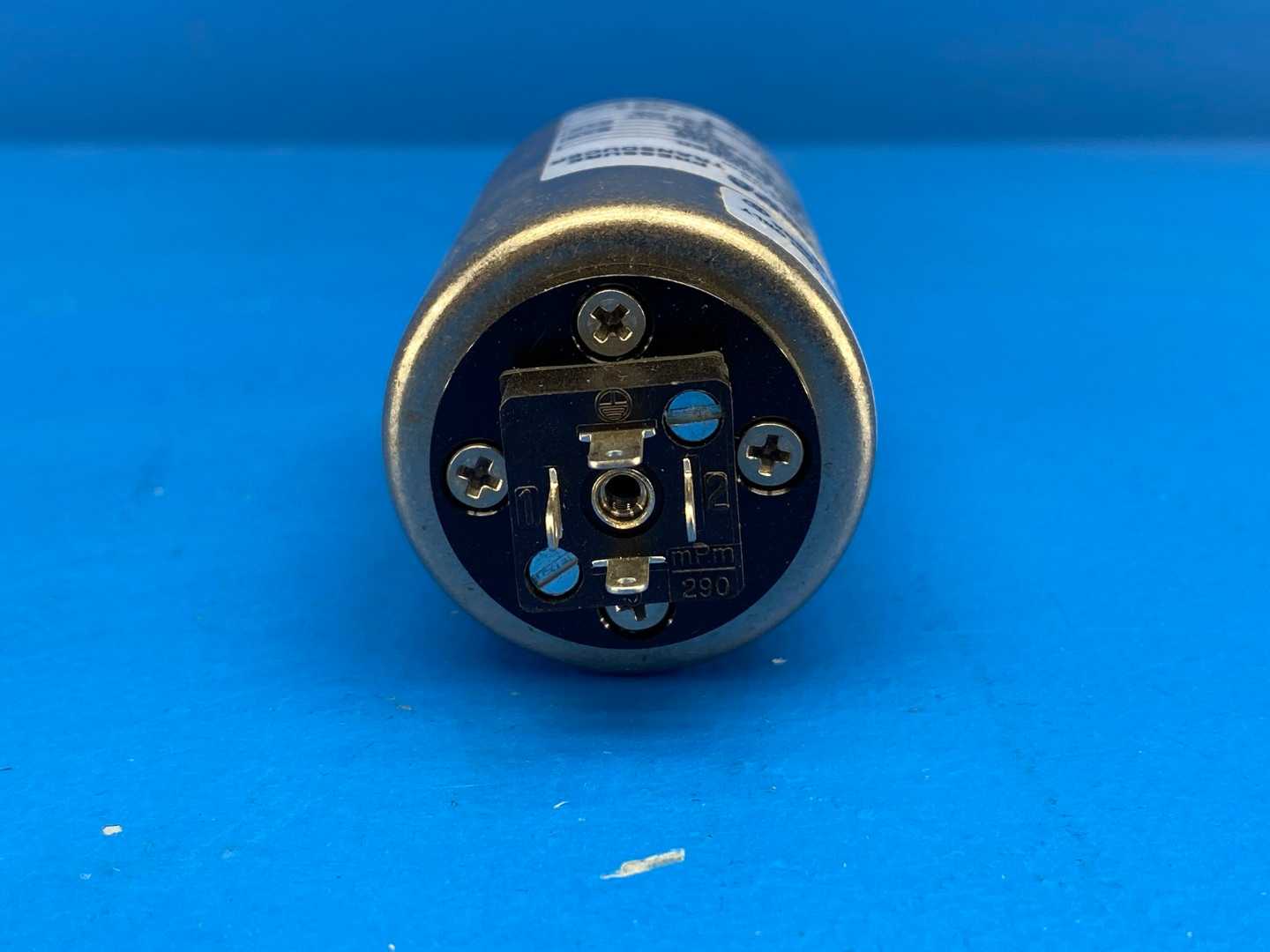

Accuracy ± 0.25 % Accuracy Class 0.1% to 0.25% Accuracy Detail ± 0.25% FS (linearity, hysteresis, repeatability); vacuum ranges ± 0.35% typ, ± 0.5% max Compensated Temperature, Max 71 °C Compensated Temperature, Min -1 °C Electrical Connection DIN 43650 C (solenoid valve) Electrical Output 4 to 20 mA Electrical Output Note 4 to 20 mA (2-wire reverse polarity protected) Gauge Type Stainless steel diaphragm,silicone oil-filled piezoresistive semiconductor sensor Input Resistance (Vpower – Vmin) x 50 (1500 O max) Materials, Wetted 17-4 Stainless Steel, 300 Stainless Steel Measurement Pressure Type Gauge Measurement Pressure, Max 3000 psi Measurement Pressure, Min 0 psi Operating Temperature, Max 71 °C Operating Temperature, Min -18 °C Output Signal Current Process Connection Size 1/4 in Process Connection Type NPT Male Proof Pressure 2x Full Scale Proof Pressure Note 200% or 13,000 psi max, whichever is less Shock 50 g, 11 ms half-sine Span Setting Adjustable Range 16 mA ± 1% FS Stability ± 0.5% Supply Power Note 12 to 30 Vdc unregulated Supply Voltage 12 to 30 Vdc Vibration 15 g, 10 to 2000 Hz Weight 266 g Zero/Balance Error 4 mA ± 2%
