Manufacturer :
Parker
Serial #:
N/A
HP / AMP / KW / KVA :
X
Length (Inches):
32
Estimated Packaging Weight:
1
Estimated Total Weight:
9

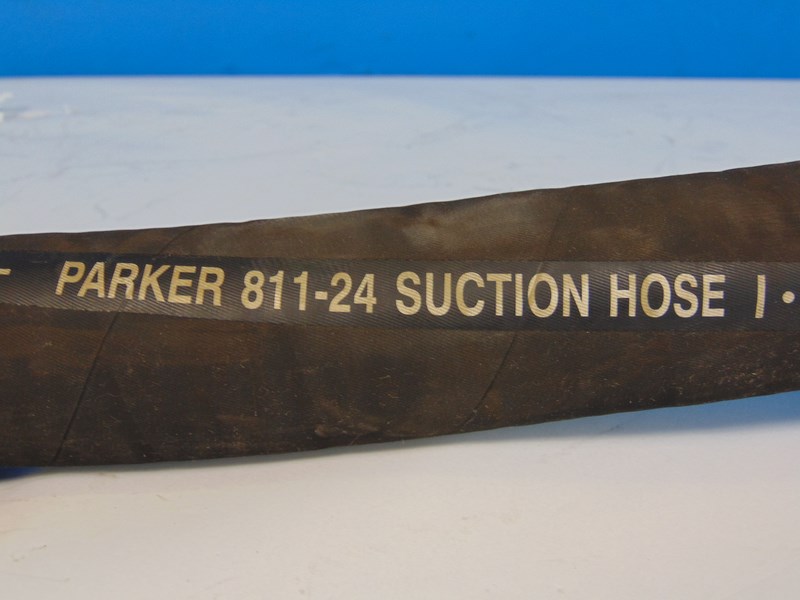

Model :
811-24
Year :
N/A
Amps :
N/A
Phase :
X
Width (Inches):
2.375
Height (Inches):
2.375
Weight: | 1.04 lb/ft, 1.55 kg/m |
Minimum Operating Temperature: | -40 °F, -40 °C |
Hose I.D. (size): | -24 |
Media: | Lubricants, Petroleum Hydraulic Fluids |

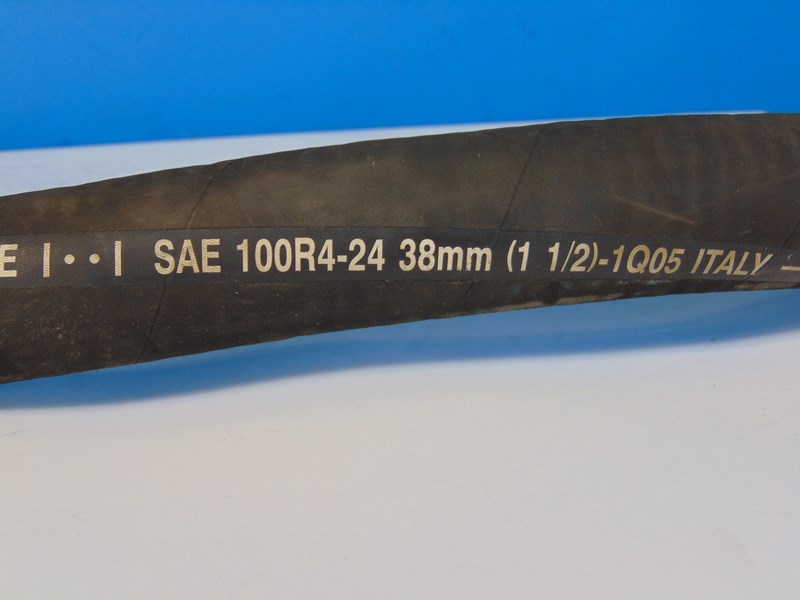

Specifications Met: | SAE 100R4, SAE J1943, USCG HF |
Compatible Fitting: | 81 Series, 88 Series, 43 Series |
Inside Diameter: | 1-1/2 inch, 38.1 mm |
Application: | Lubricating Oils, Petroleum Base Hydraulic Fluids |
Hose Reinforcement Material: | Multiple Layers of Spiral Fiber with Wire Helix |
Nominal Hose Inside Diameter: | 38 mm |
Outside Diameter: | 2.050 inch, 52 mm |
Vacuum Pressure Rating: | 84 kPa, 25 Inch-Hg |
Maximum Operating Pressure: | 150 psi (w/ 81/88DB), 1 MPa (w/ 81/88DB), 10 bar (w/ 81/88DB), 50 psi (w/ 88HC), 0.3 MPa (w/ 88HC), 3 bar (w/ 88HC) |
Hose Inner Tube Material: | Synthetic Rubber |
Cover Material: | Synthetic Rubber |
Minimum Bend Radius: | 5 inch, 127 mm |
Maximum Operating Temperature: | 212 °F, 100 °C |
Hose Cover Type: | Standard Cover |
