Spherical Roller Bearing SKF 22236 CCK/W33 Tapered Bore 180x320x86mm Double Row
Spherical Roller Bearing SKF 22236 CCK/W33 Tapered Bore 180x320x86mm Double Row
Spherical Roller Bearing SKF 22236 CCK/W33 Tapered Bore 180x320x86mm Double Row
Spherical Roller Bearing SKF 22236 CCK/W33 Tapered Bore 180x320x86mm Double Row
| Description | Details |
|---|---|
| Available Quantity | 1 |
| Model | 22236 CCK/W33 |
| Condition | Used |
| Manufacturer | SKF |
| Asset Number | KSCU / 1193 |
| Guarantee or ASIS | ASIS WHEREIS No Returns or Exchanges |
| Inspections - Yellow Tag | 5.3 Used: ASIS |
| Packaging Cost | 1.4 Cardboard $25 |
$479.95
Basic Information
Asset #
KSCU / 1193
Available Quantity
1
Inspections - Yellow Tag
5.3 Used: ASIS
Condition
Used
Guarantee or ASIS
ASIS WHEREIS No Returns or Exchanges
Item Description

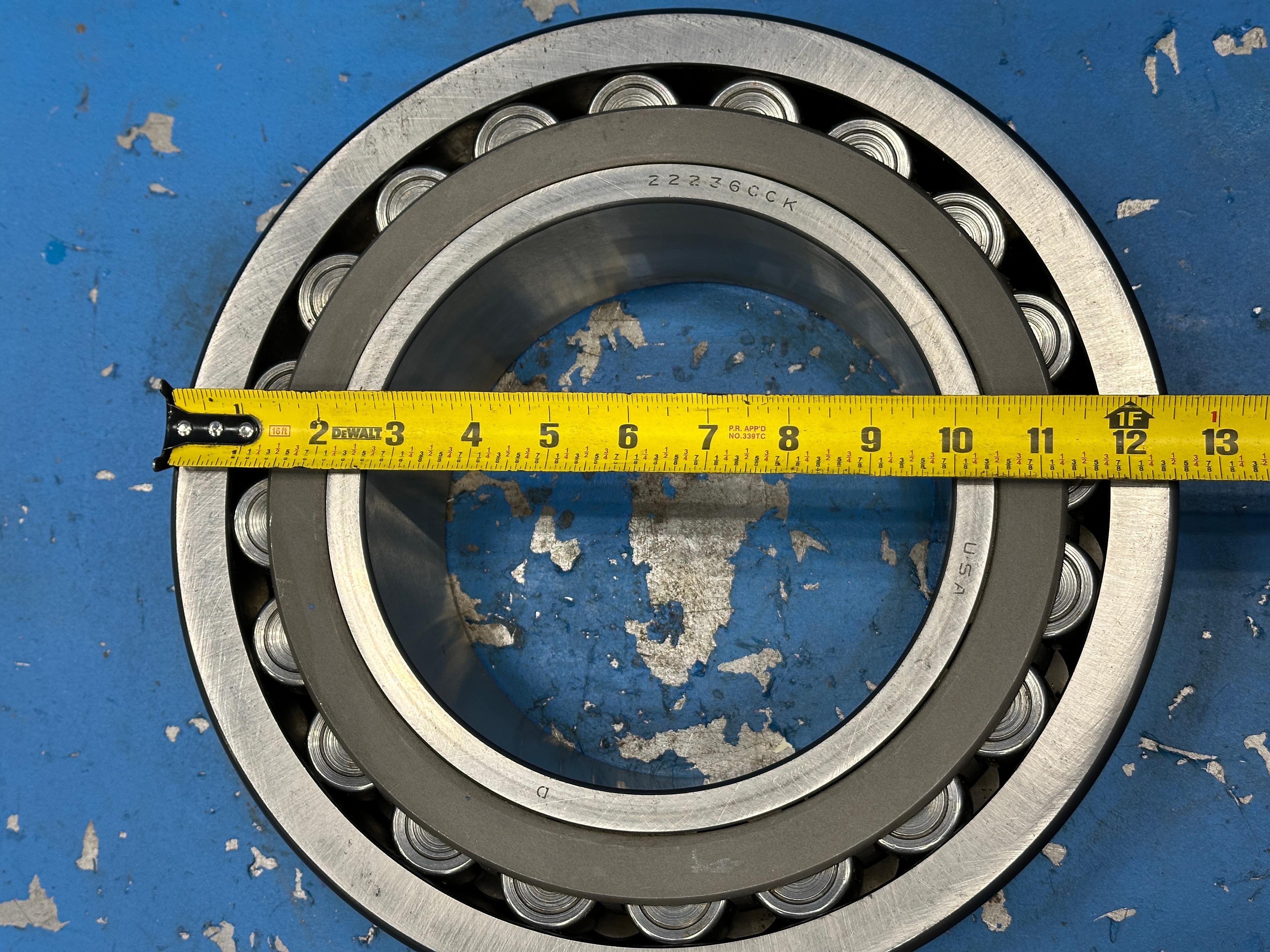

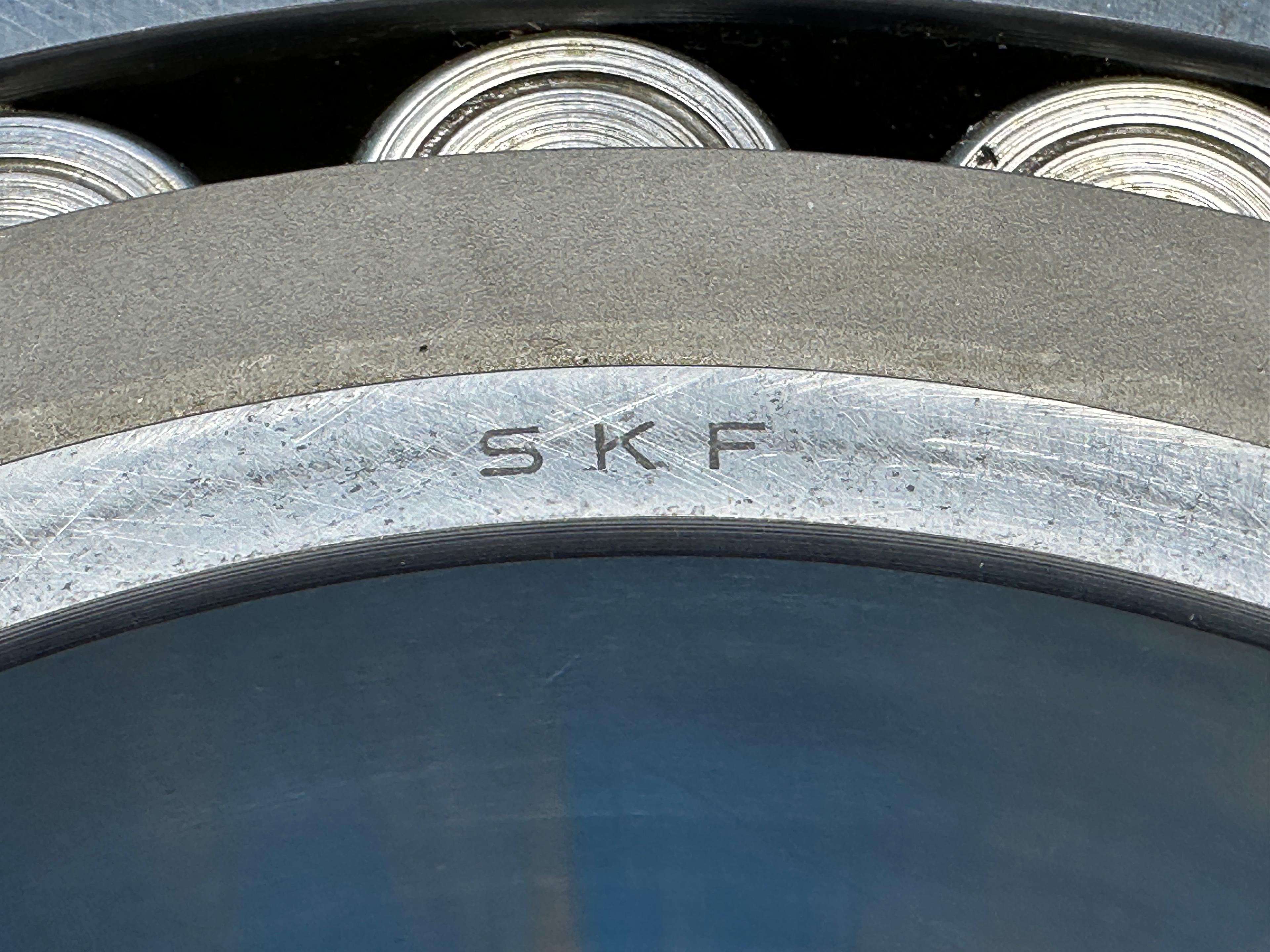

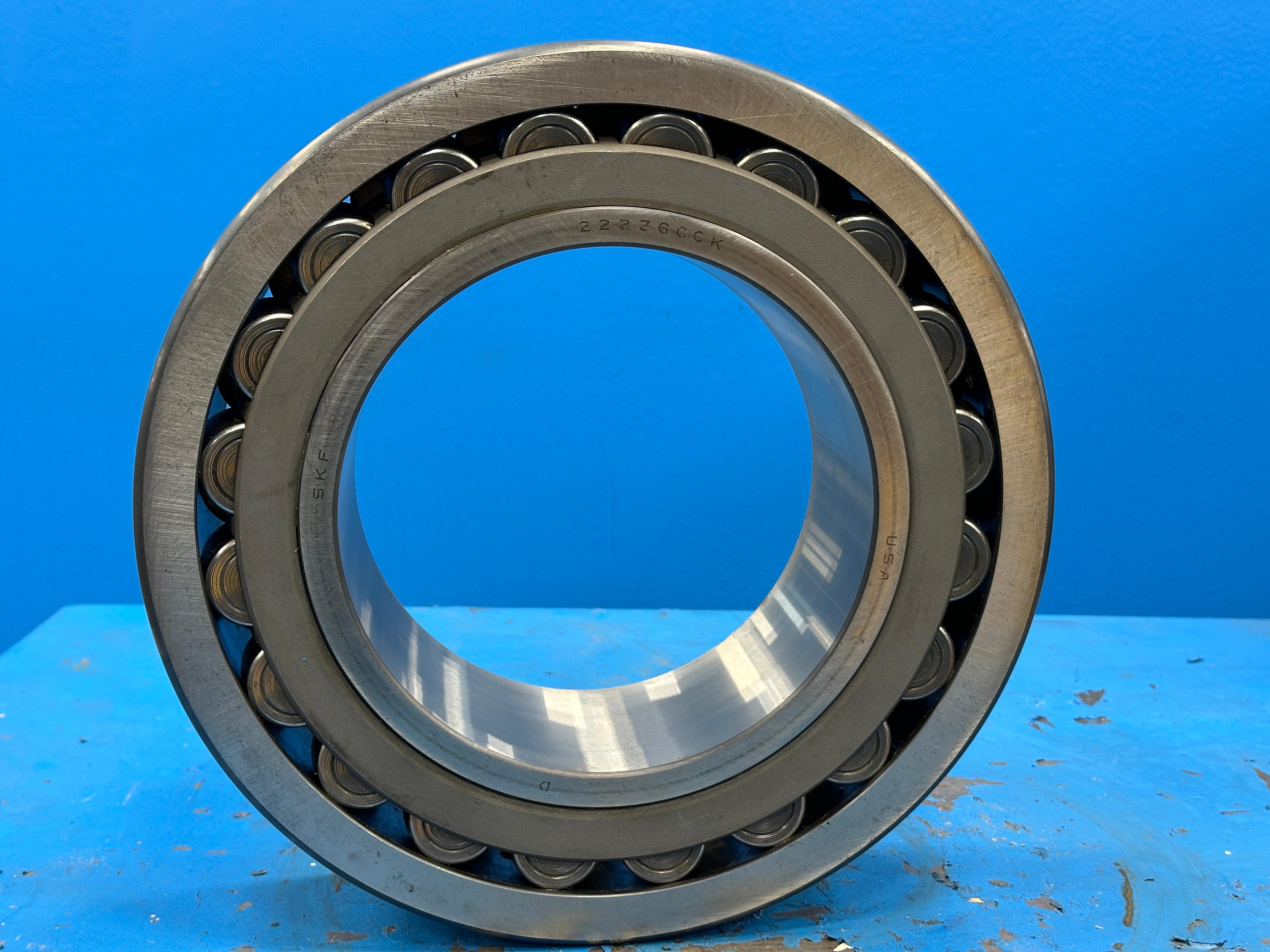

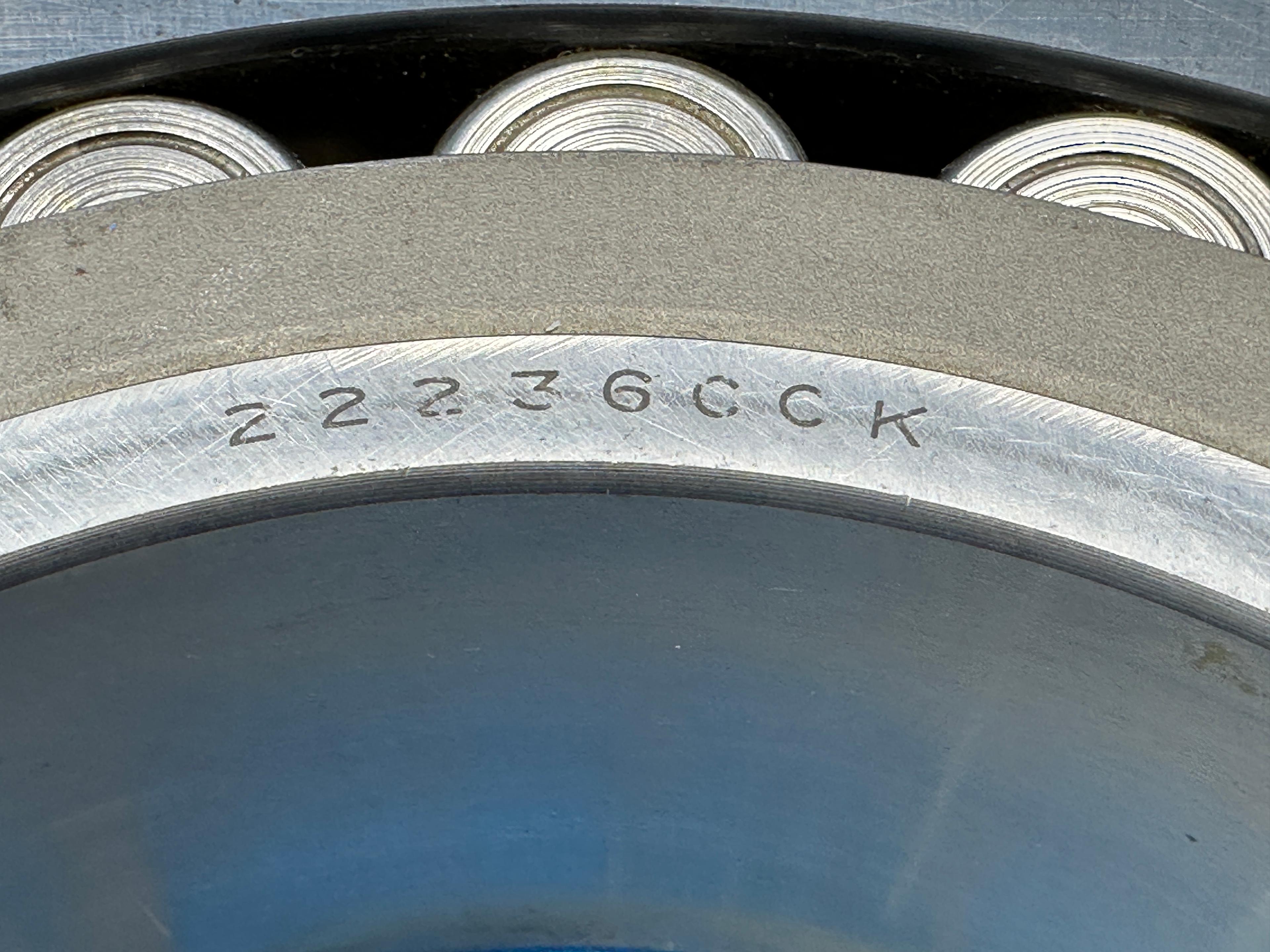

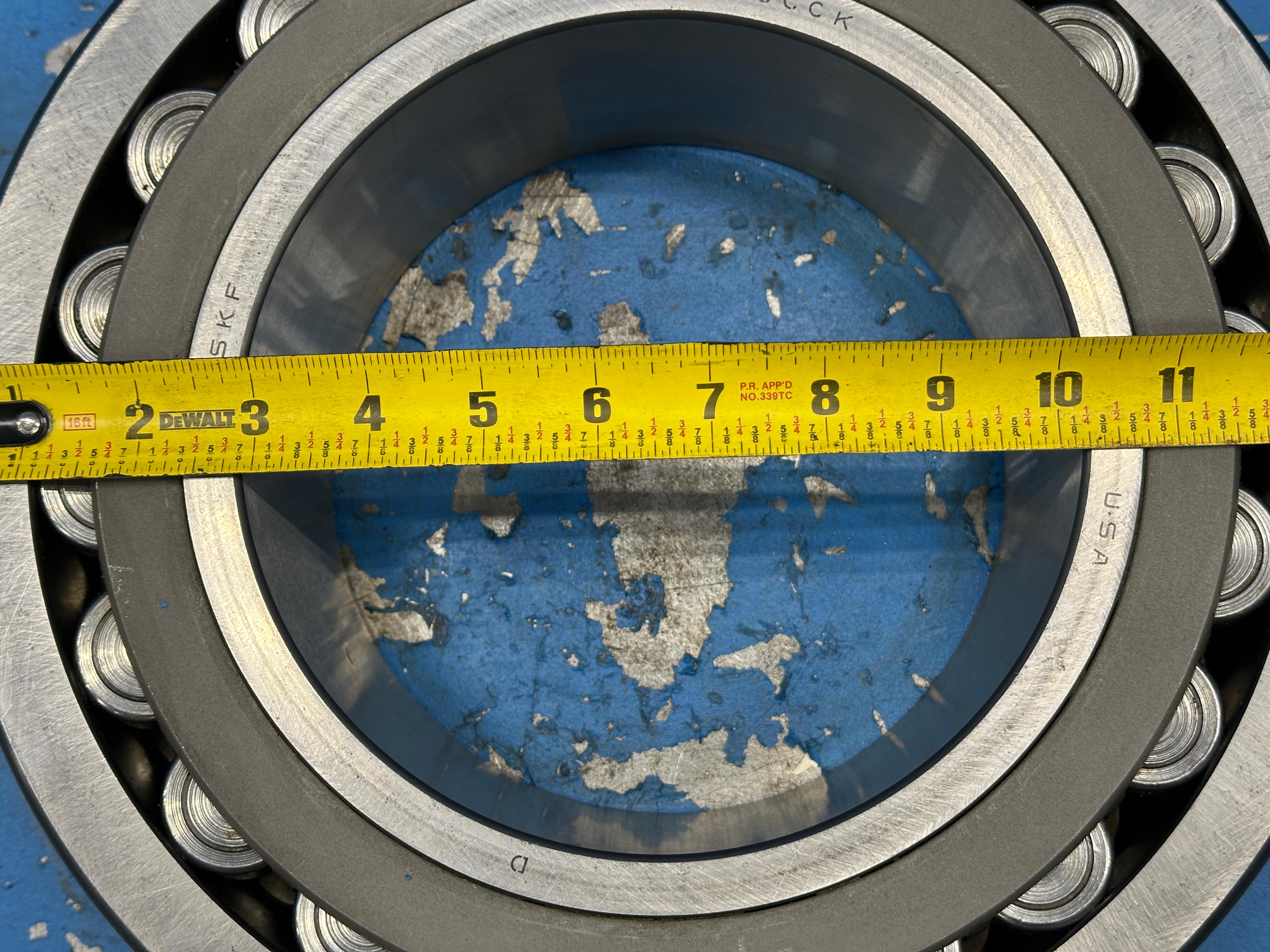

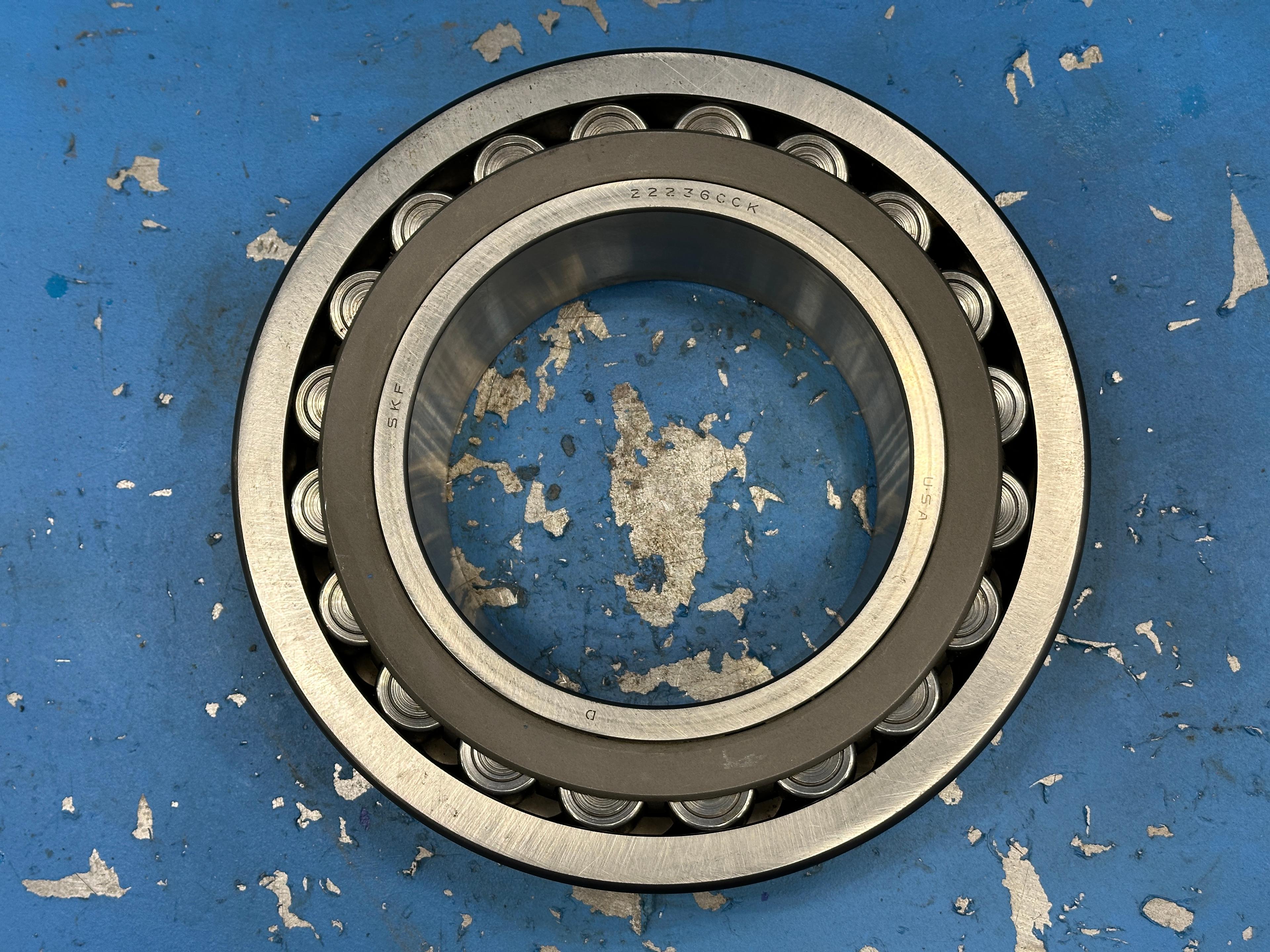

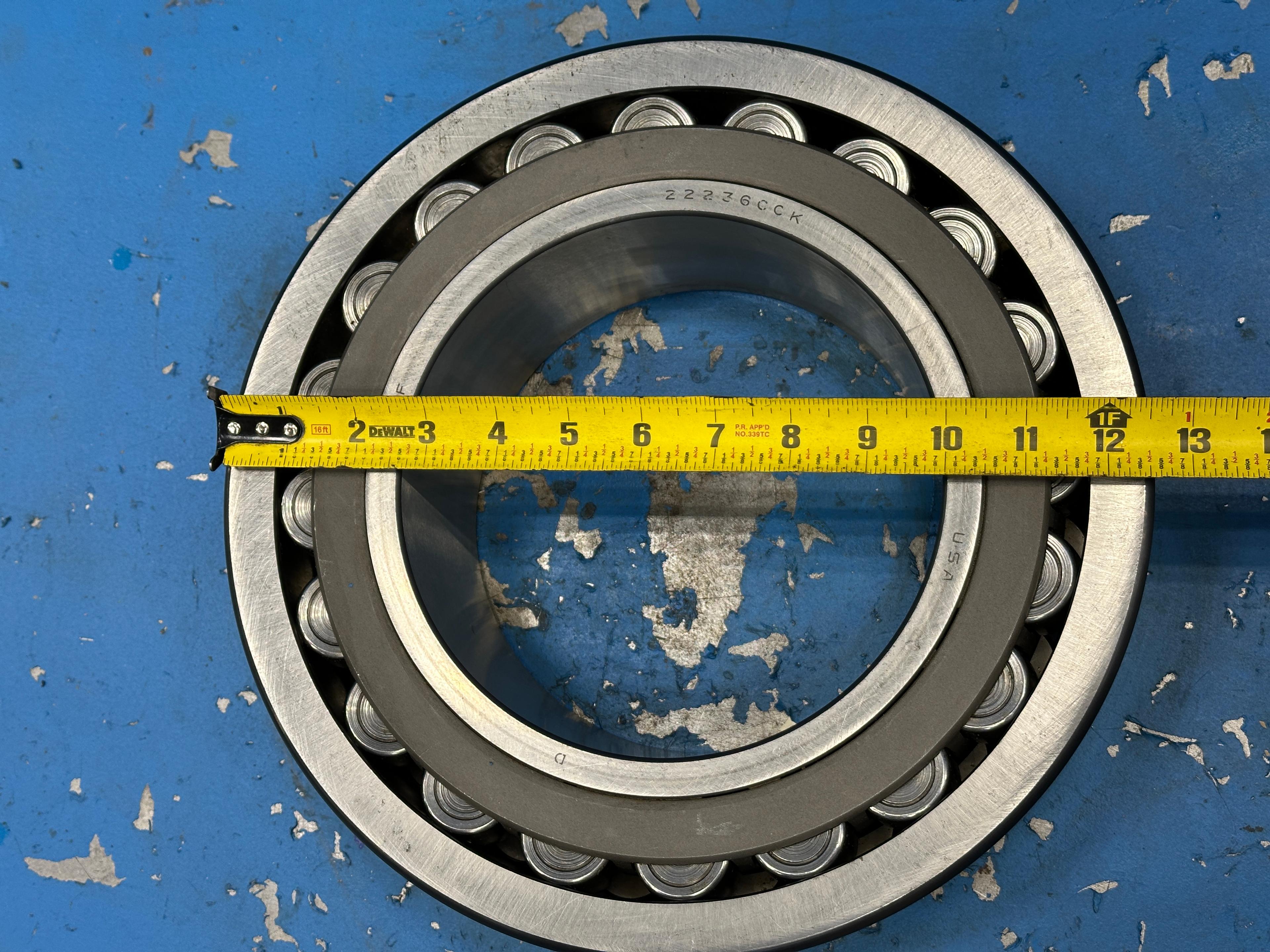

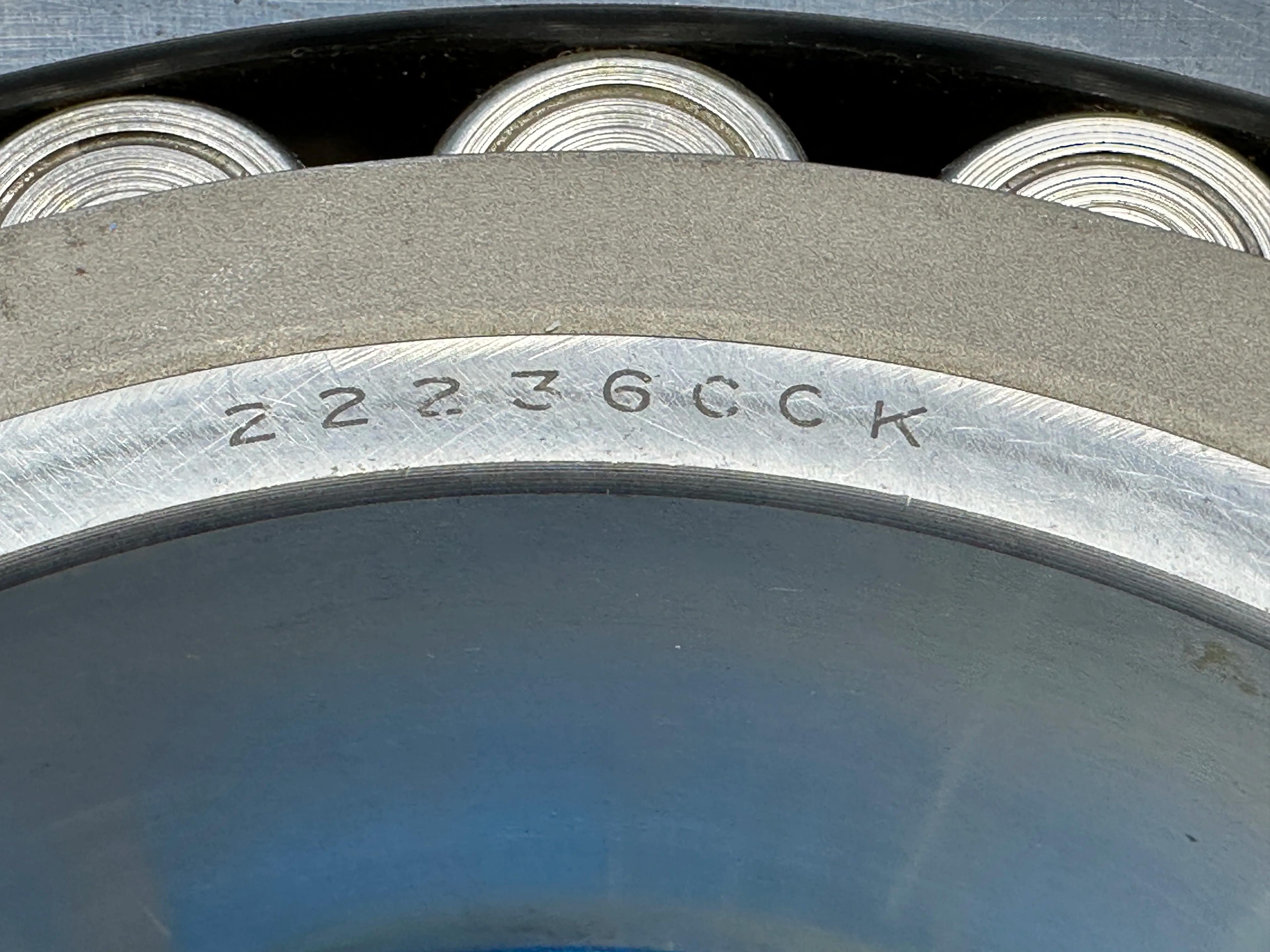

This is an SKF 22236 CCK/W33 double-row spherical roller bearing, stamped "22236CCK" with "SKF" and "USA" visible on the inner ring face (older domestic SKF production, generally regarded as premium over import stock). Spherical roller bearings carry very high radial loads plus axial loads in both directions and are self-aligning, meaning they tolerate shaft deflection and housing misalignment without losing service life. That makes them a workhorse in heavy rotating equipment: crushers, vibrating screens, large gearboxes, fans, pumps, conveyors, and paper machinery. Your tape measurements confirm the published geometry: 7.087 inch (180 mm) bore, 12.598 inch (320 mm) outside diameter, and 3.386 inch (86 mm) width.
The designation breaks down cleanly. "222" is the spherical roller bearing type in the wide 22 dimension series, "36" is the bore code (36 x 5 = 180 mm), "CC" is SKF's standard Explorer-class design with a sheet-steel cage and optimized roller guidance, "K" denotes the 1:12 tapered bore (mounted on an adapter or withdrawal sleeve, or a tapered shaft seat), and "W33" is the annular groove with three lubrication holes in the outer ring for re-lubrication in service. The unit rates at 1237 kN dynamic and 1560 kN static load capacity with a 2600 rpm limiting speed, and weighs roughly 64 lb (29 kg).
Factory Information
| Specification | Value |
|---|---|
| Manufacturer | SKF |
| Model | 22236 CCK/W33 |
| Type | Double-row spherical roller bearing |
| Bore Diameter (d) | 7.087 in (180 mm) |
| Outside Diameter (D) | 12.598 in (320 mm) |
| Width (B) | 3.386 in (86 mm) |
| Bore Type | Tapered 1:12 (K) |
| Cage | Sheet steel (CC design) |

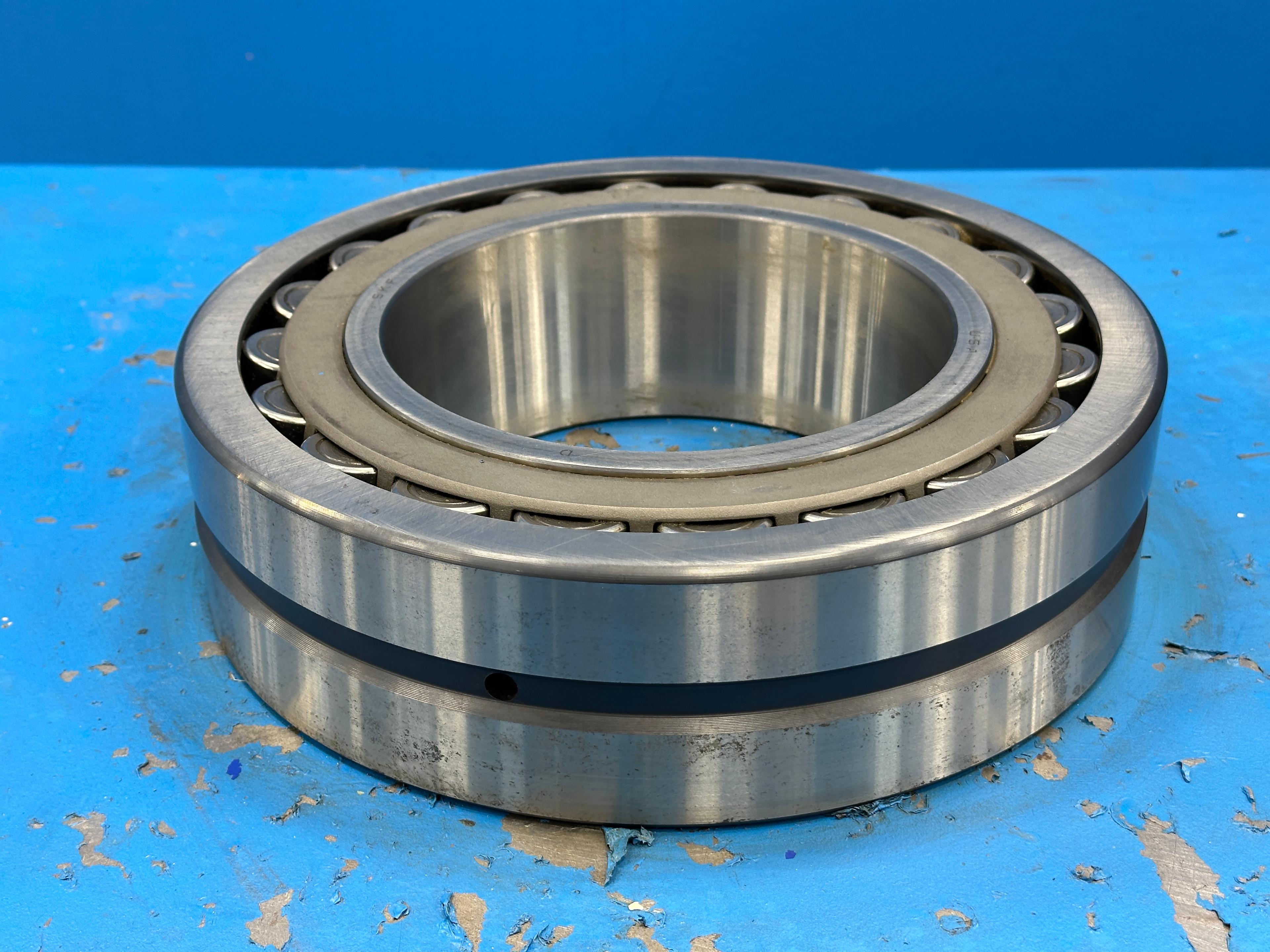

| Lubrication Feature | W33: annular groove plus 3 lube holes in outer ring |
| Internal Clearance | CN (standard); no clearance suffix stamped |
| Fillet Radius | 0.12 in (3.0 mm) |
| Dynamic Load Rating (C) | 1237 kN |
| Static Load Rating (C0) | 1560 kN |
| Limiting Speed | 2600 rpm |
| Closure | Open |
| Approx. Weight | 64 lb (29 kg) |
| Country of Origin | USA |
Specifications
SKF
22236 CCK/W33
N/A
N/A
N/A
N/A
14
14
4
N/A
N/A
65
KSCU / 1193
Packaging fees
1.4 Cardboard $25
Payment Details
$479.95
