The DM3801 valve driver provides a bipolar current drive to a current controlled valve.

The unit uses a pulse-width modulated square wave output that switches at a high frequency. The duty cycle of the output wave changes to create an average DC current through the valve magnet winding.

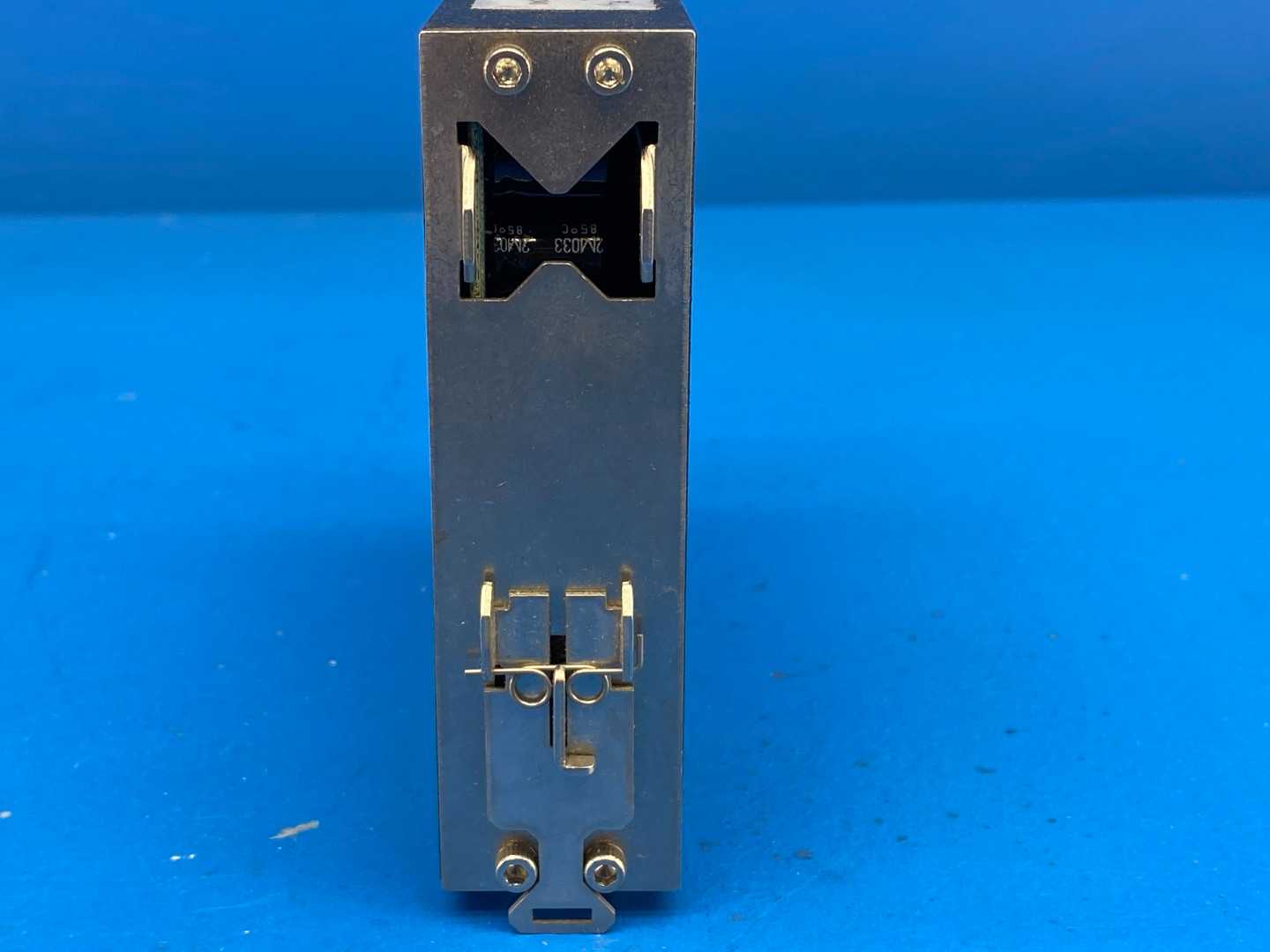

The DM3801 valve driver is housed in an aluminum DIN rail mountable case with a stainless steel mounting plate and plastic front panel.

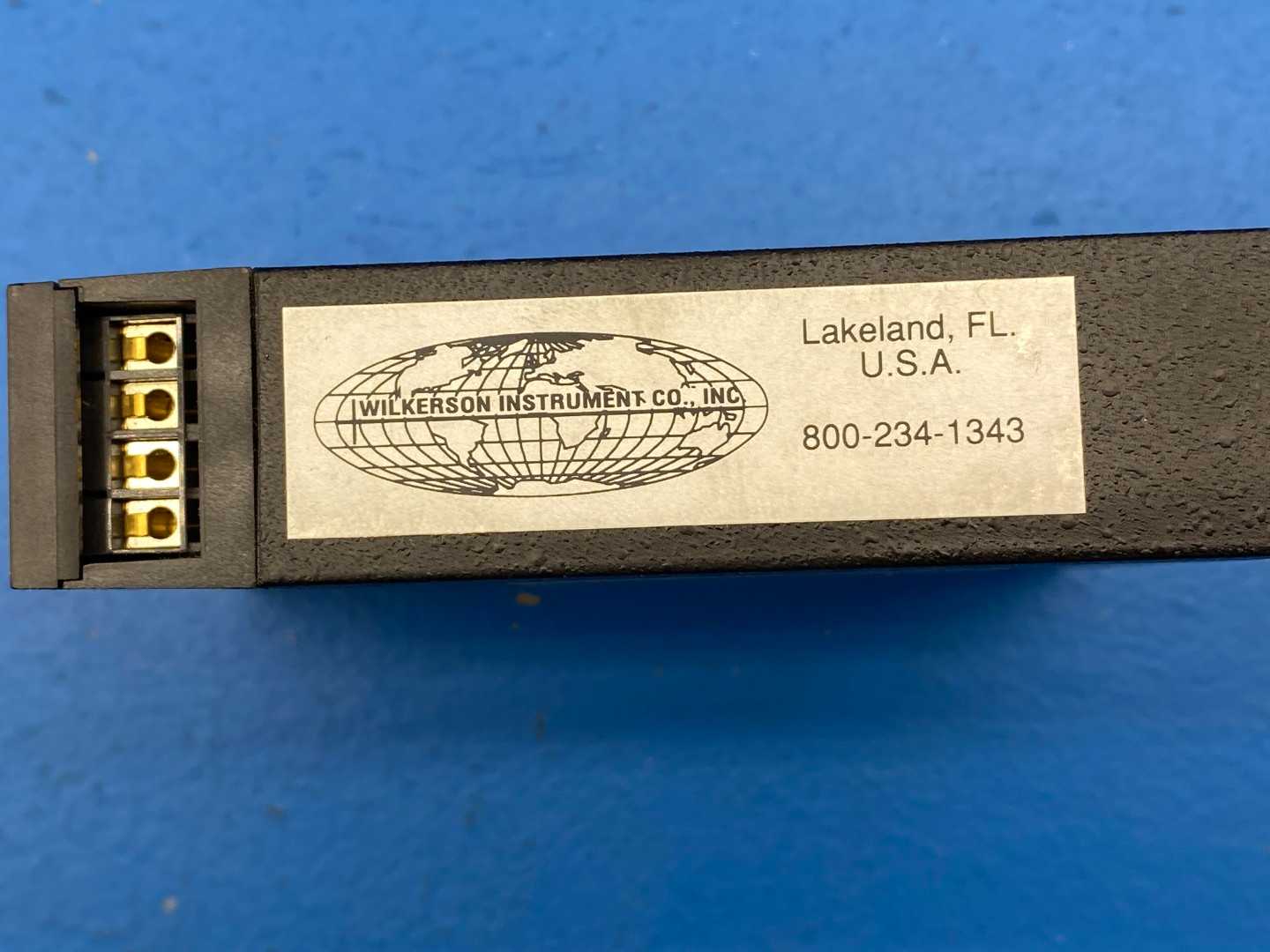

Connections are made via two 4-pin plug-in terminal blocks. These terminal blocks allow the product to be removed without disconnecting the wires.

TYPICAL APPLICATIONS
Hydraulic proportional valve driv

Factory Information


The Wilkerson Instrument Co. DM3801 offers precise signal conditioning with an input range of 4/20 mADC (62-ohm internal shunt) or -10/10 VDC (>500 kilohms impedance). It provides span and zero adjustments of ±15% of span and an output capability from -35/35 mADC to -100/100 mADC. The unit delivers high accuracy at ±0.1% of span and exceptional input-to-output linearity of ±0.02% of span. With a step response time of less than 10 ms (typical) for inductive loads and an output ripple of only 0.1% peak-to-peak, this model ensures excellent performance in demanding applications. Its common mode rejection exceeds 100 dB from DC to 60 Hz, and it operates within a temperature range of 14 to 140 °F (-10 to 60 °C), with temperature stability of ±0.02% of span per °C. Power requirements include 115 VAC ±10% at 50/60 Hz, consuming a maximum of 2.5W, with an optional 24 VDC supply (21 to 32 VDC).

Specifications

Manufacturer
Wilkerson Instrument Co. Inc.
Model
DM3801
Serial
N/A
Year
N/A
HP / AMP / KW / KVA
N/A
Amps
2.4VA
Length (Inches)
2
Width (Inches)
5
Height (Inches)
5
Phase
N/A
Estimated Packaging Weight
0
Estimated Total Weight
1.21875
Asset Number
KSC1290 / 552
