Basic Information


Asset #

KSC703 / 110

Available Quantity

555

Inspections - Yellow Tag

1.1 Appears Unused no box

Condition

New

Guarantee or ASIS

1. HIGH CONFIDENCE ITEM: We will offer a 100% 14 Day money back less S&H.

Item Description

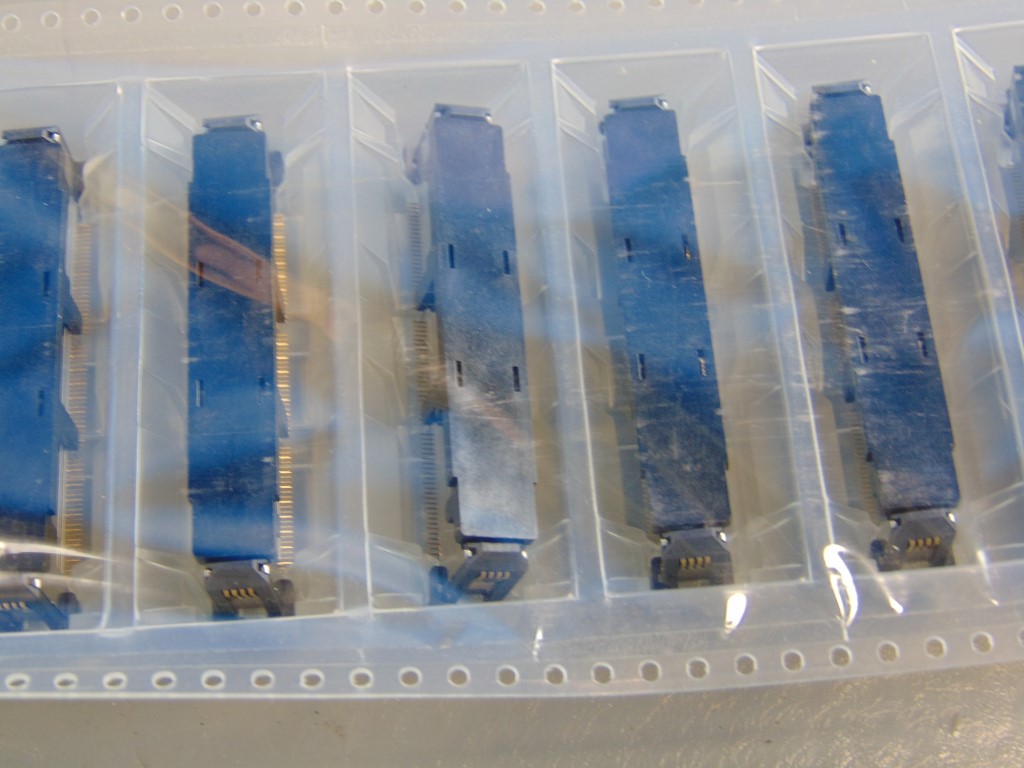

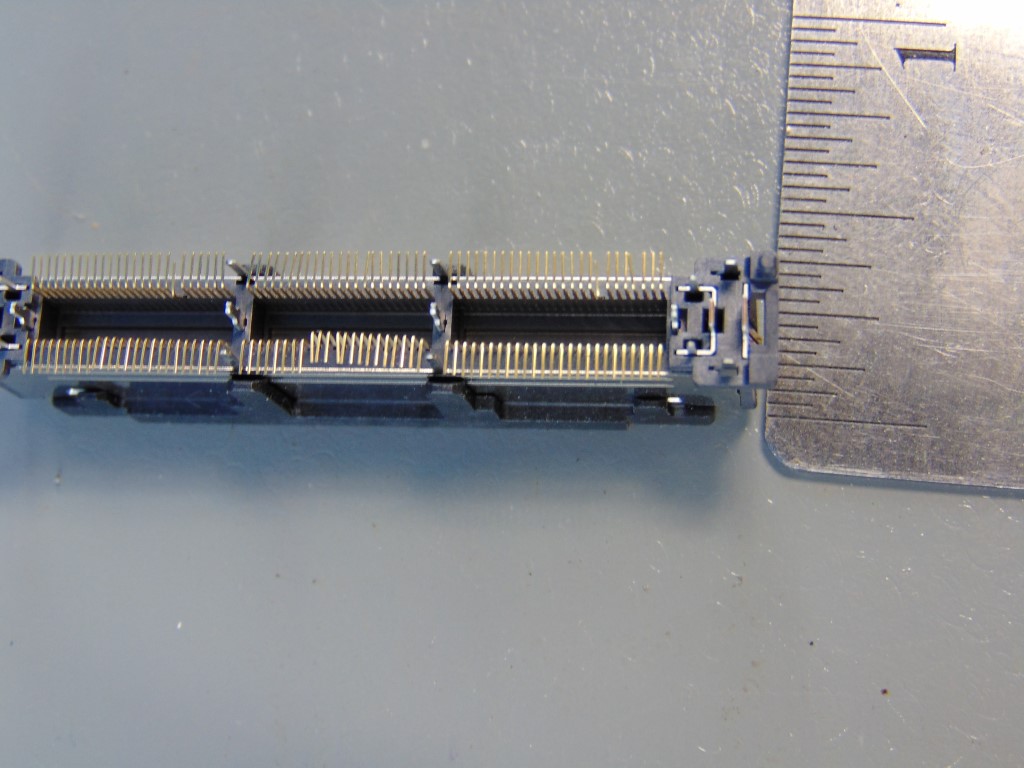

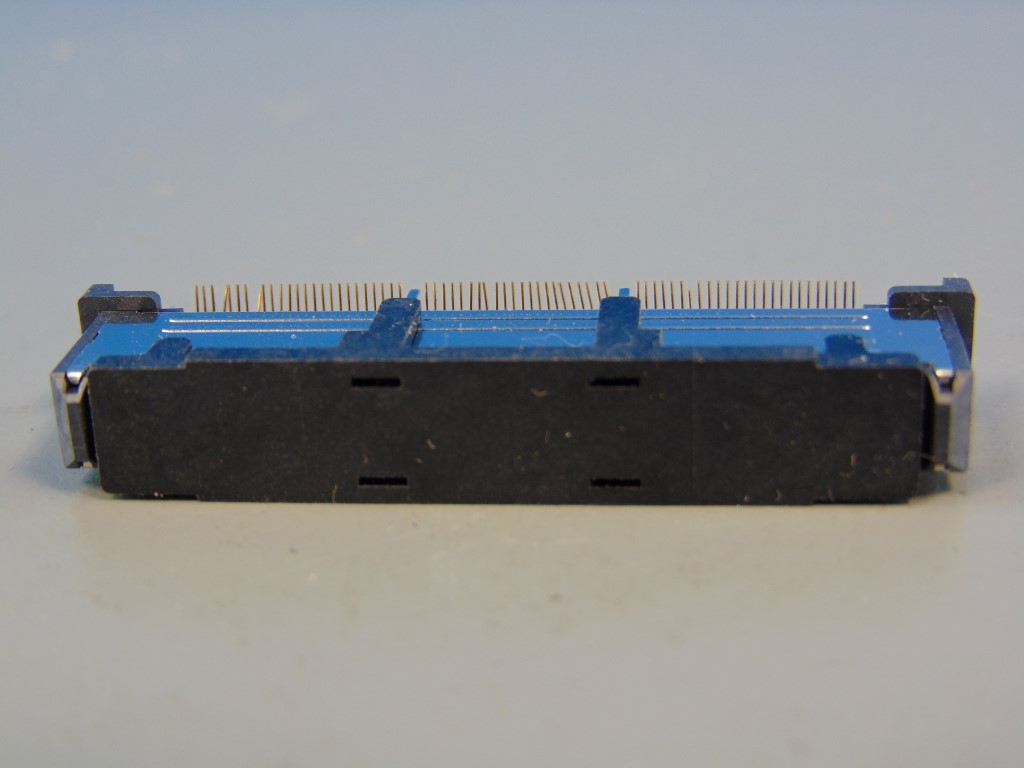

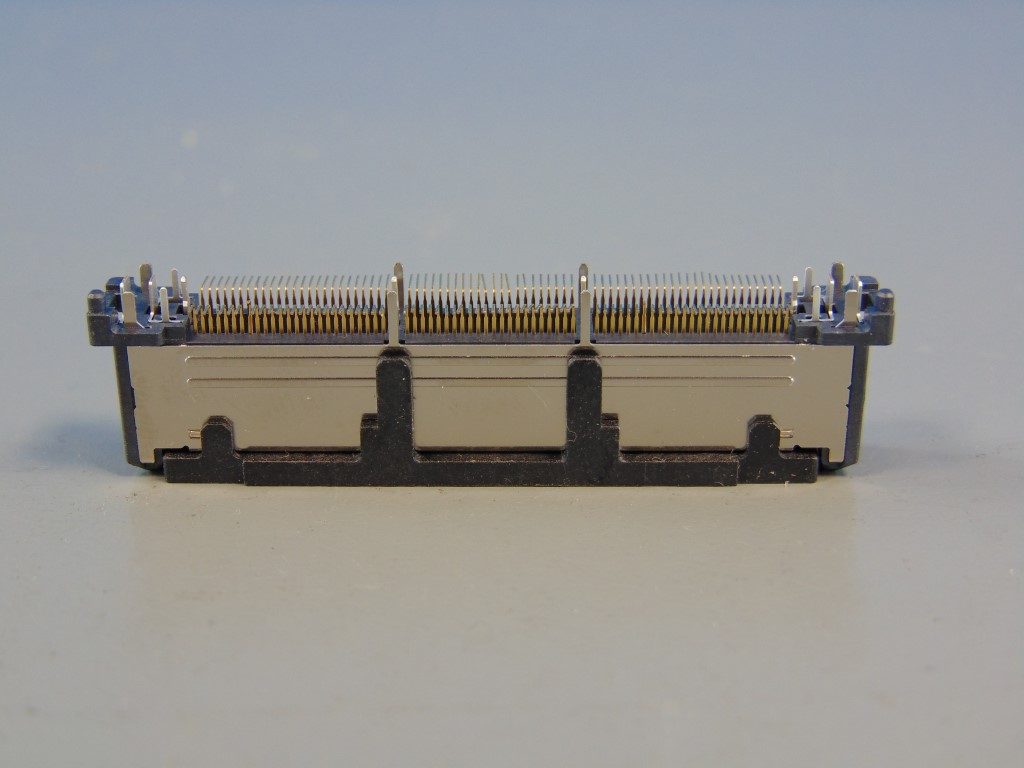

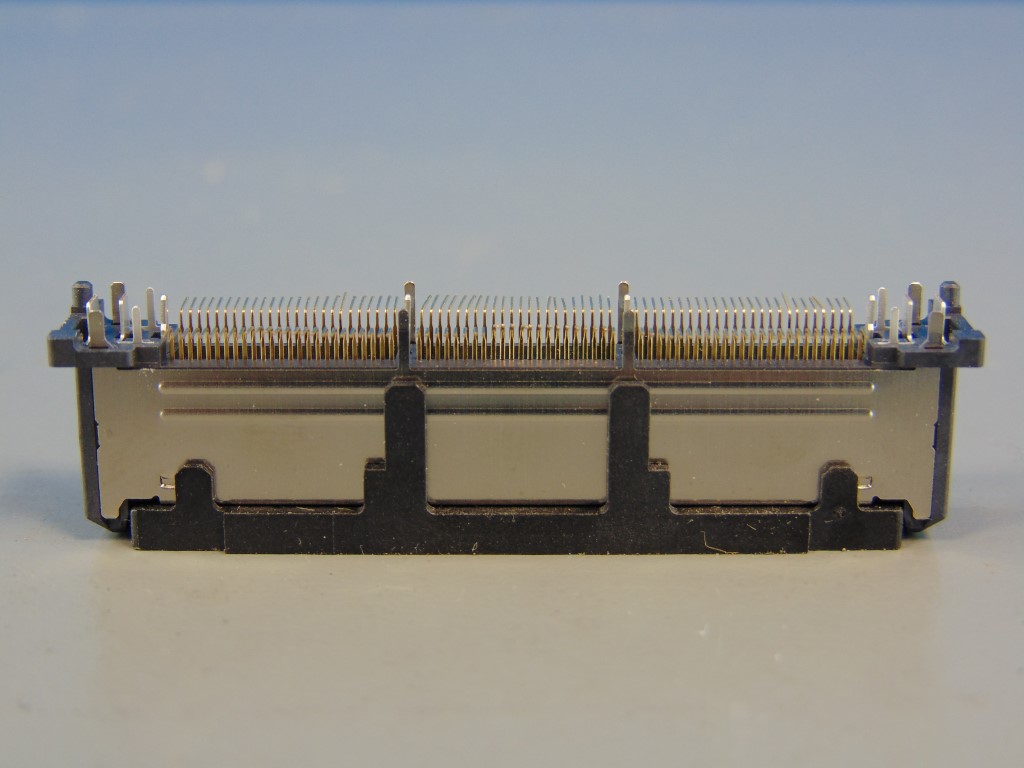

The JAE WD2M144WB1 is a docking connector that serves a key role in connecting electronic devices securely. Developed by JAE, a leading manufacturer known for innovative connector solutions, this product is specifically designed for robust applications in various industries including telecommunications, consumer electronics, and automotive. The connector features a size A2 configuration, which is designed to fit snugly, providing reliable connectivity while minimizing signal loss. This makes it ideal for high-performance applications where data integrity is crucial. Key features of the JAE WD2M144WB1 include its 2:1 mating ratio which ensures a secure fit and enhanced durability. This connector is built to withstand repetitive mating cycles, making it suitable for docking stations where devices are frequently connected and disconnected. The ergonomic design further enhances usability, allowing for easy engagement and disengagement. Additionally, the connector is designed with environmental protections to offer resistance against dust and moisture, thus expanding its usability in various conditions.

Factory Information


1. Connector Type: Docking Connector 2. Mating Size: A2 3. Mating Ratio: 2:1 4. Contact Configuration: 144 pins 5. Operating Temperature Range: -40 to 85 degrees Celsius 6. Durability: Up to 5000 mating cycles 7. Material: High-performance thermoplastic 8. Shielding: Yes, for signal integrity 9. Mounting Style: Vertical 10. Compliance: RoHS compliant

Specifications

Manufacturer
JAE
Model
WD2M144WB1R300
Serial
N/A
Year
N/A
HP / AMP / KW / KVA
N/A
Amps
N/A
Length (Inches)
0.25
Width (Inches)
1
Height (Inches)
0.5
Phase
N/A
Estimated Packaging Weight
1
Estimated Total Weight
2
Asset Number
KSC703 / 110

Packaging fees

Packaging Cost

1.6 6x10 CH $3.00

Payment Details

Appraised Value

$7.20

Payment Methods

Payment Types Accepted : Visa , Mastercard , Check (14 Day Hold Before Release) , Cash
