Manufacturer :
BWF/ M.Stephens
Serial #:
87115-75220
HP / AMP / KW / KVA :
N/A
Length (Inches):
4
Estimated Packaging Weight:
1
Estimated Total Weight:
3
Model :
603-CGV
Year :
N/A
Amps :
N/A
Phase :
N/A
Width (Inches):
3
Height (Inches):
8
Description:

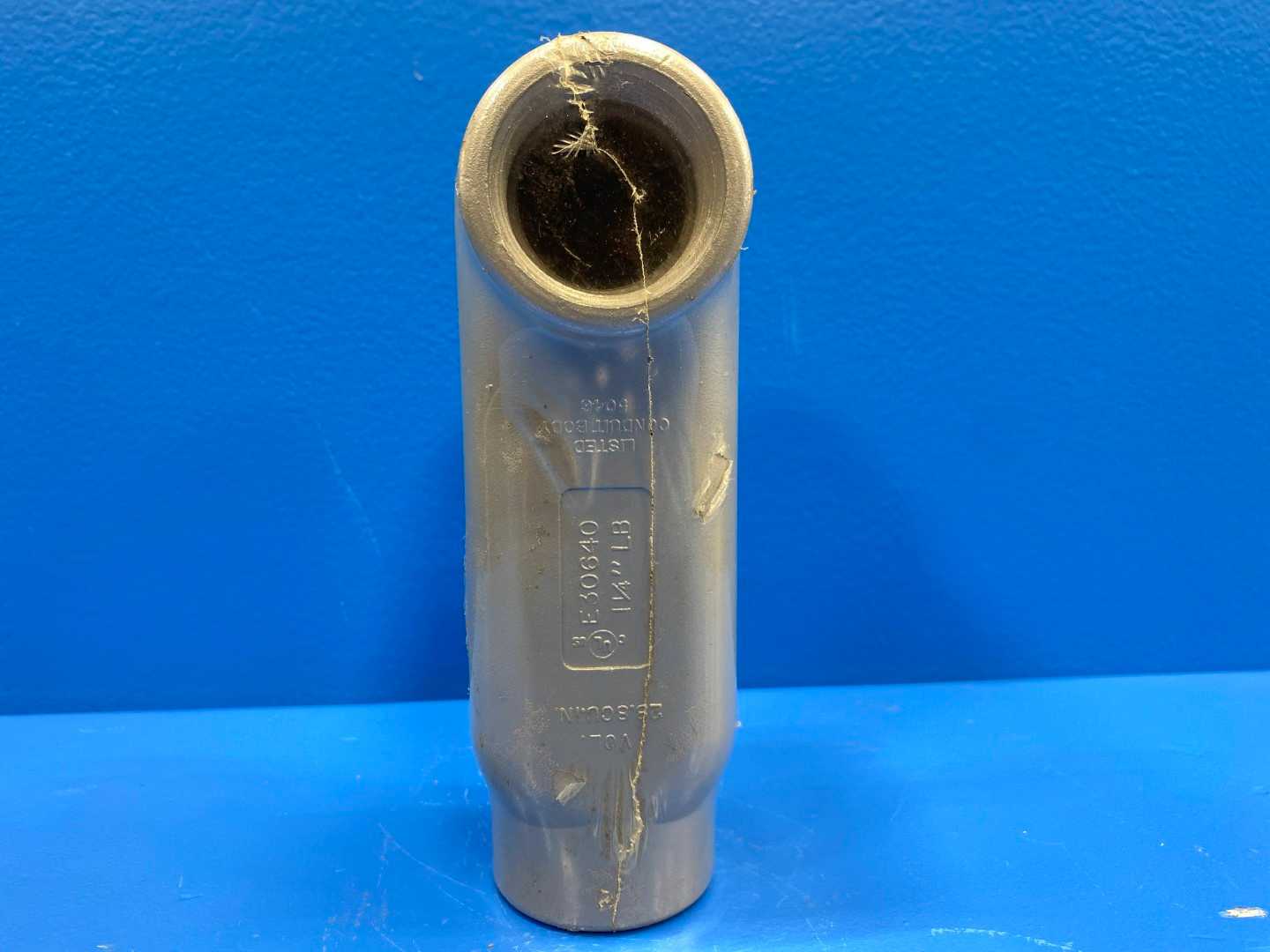

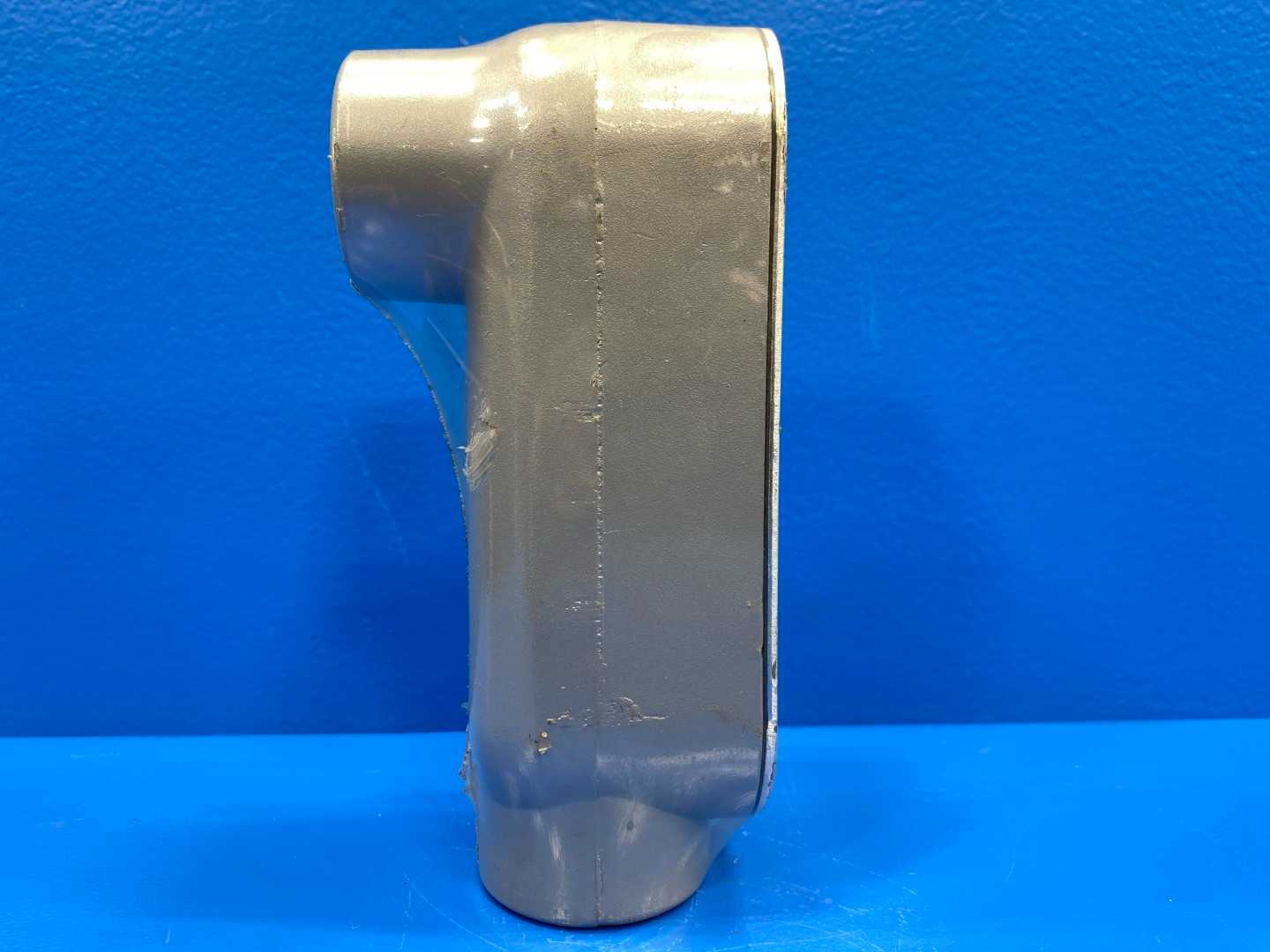

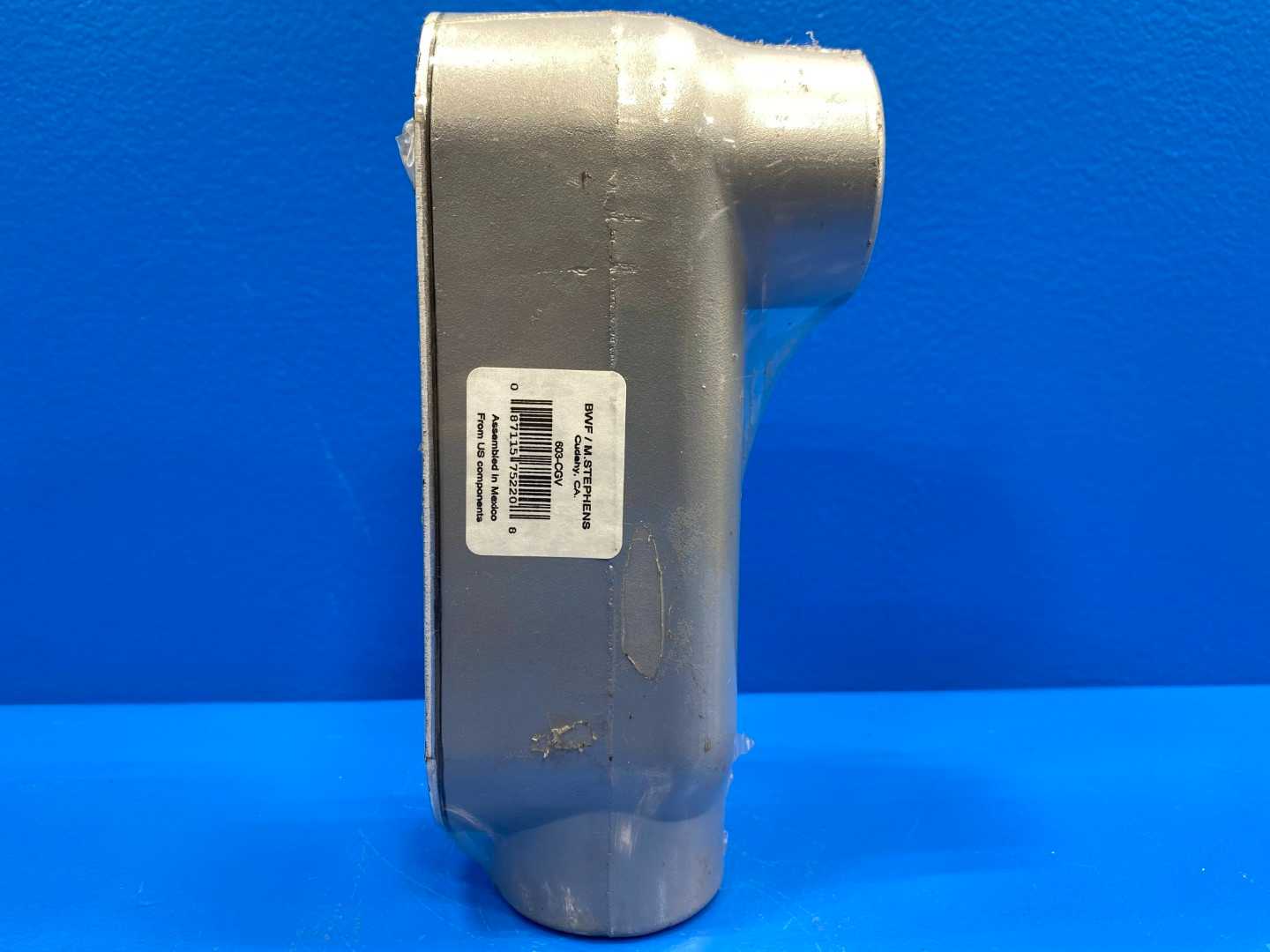

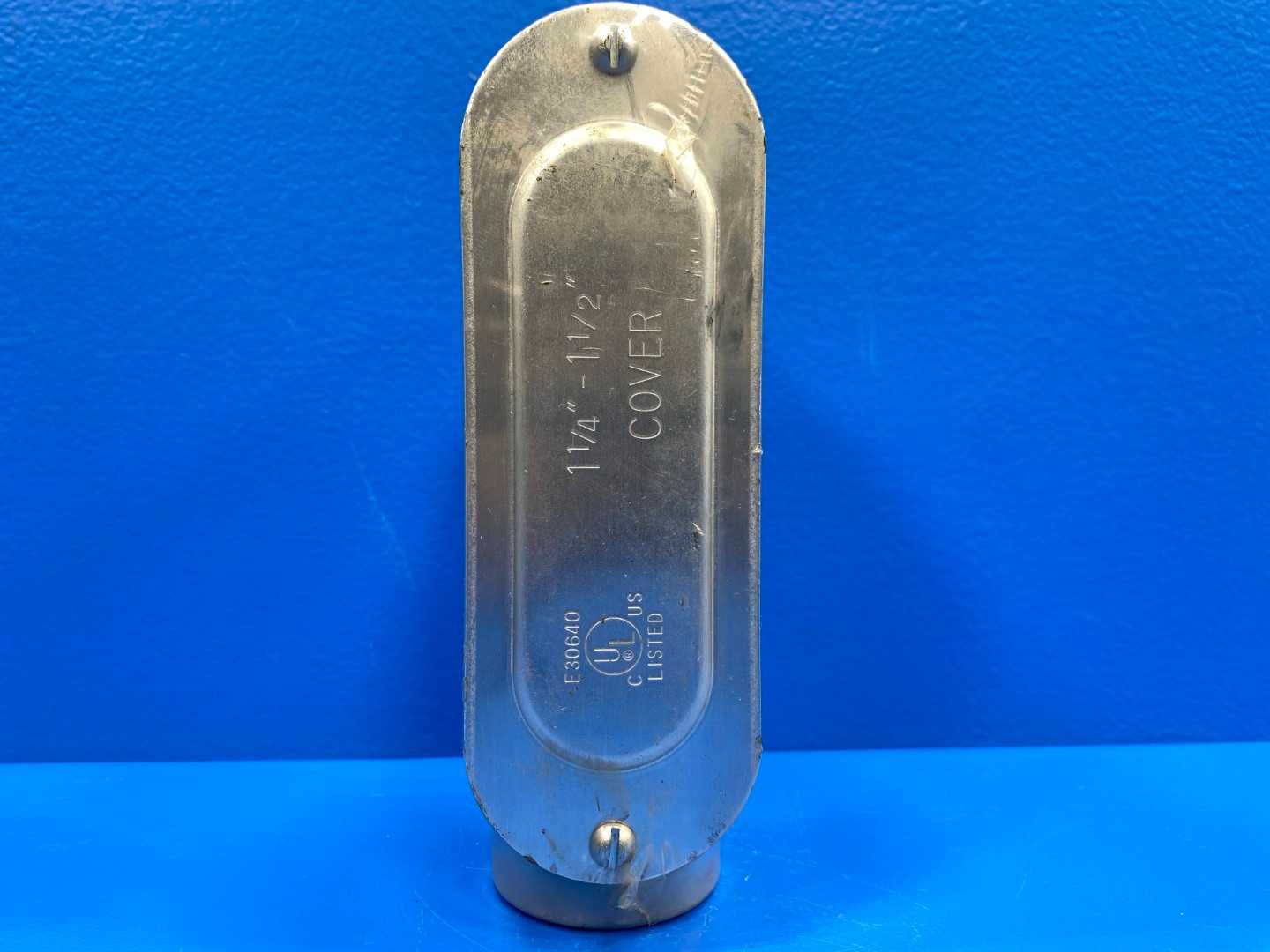

BWF 603-CGV 1-1/4" THREADED ALUM CONDUIT BODY
Technical Description:
Gray Aluminum Material; Rigid Conduit Used on; 1-1/4 Inch Hub Size; Threaded (Rigid) Installation; lb Configuration; UL, UL (Canada and Us) Approval; Back Access Opening; Inclusion Cover, Gasket; Standard Package 8 Per Case
UPC: 08711575220
Part Number: 603-CGV
Manufacturer: BWF
UPC: | 08711575220 |
Additional Information: | INCLUSION COVER, GASKET; STANDARD PACKAGE 8 PER CASE |
Catalog Number: | 603-CGV |
Access Opening: | BACK |
Configuration: | LB |
Hub Size: | 1-1/4 INCH |
Installation: | THREADED (RIGID) |
Material: | GRAY ALUMINUM |
Approval: | UL, UL (CANADA AND US) |
Used On: | RIGID CONDUIT |
CATALOG DESCRIPTION: | BWF 603-CGV TYPE LB CONDUIT BODY WITH COVER AND GASKET, HUB SIZE: 1-1/4 IN, 7.8 IN LENGTH, 2-1/2 IN WIDTH, 3.7 IN HEIGHT, MATERIAL: BODY, ALUMINUM DIE-CAST, COVER: STAMPED ALUMINUM, GASKET: NEOPRENE, GRAY COLOR, CONNECTION: SET SCREW, STANDARD: UL FILE NUMBER E121488, UL 514B, CSA C22.2 NO. 18, CSA LR57925, NEMA FB-1 AND NEC ARTICLE 348, FOR USED TO GAIN ACCESS TO THE INTERIOR OF A RACEWAY FOR WIRE PULLING, INSPECTION AND MAINTENANCE |
Category: | Aluminum Conduit Bodies & Covers |
Full Size Image | |
Full Technical Description: | Gray Aluminum Material; Rigid Conduit Used on; 1-1/4 Inch Hub Size; Threaded (Rigid) Installation; lb Configuration; UL, UL (Canada and Us) Approval; Back Access Opening; Inclusion Cover, Gasket; Standard Package 8 Per Case |
Manufacturer: | Teddico Electrical Products |
Manufacturer Brand: | Teddico/BWF |
Product Brochure | |
Product Description: | BWF 603-CGV 1-1/4" THREADED ALUM CONDUIT BODY |
Sub-Category: | Conduit Body |
UNSPSC: | 39131708 |
UPC 12 Digit: | 087115752208 |
Unique Product Key: | 2951660 |
