GE Lumination LMM Series LMMQRA009NF9WWVQTRWHTE 4-Head Recessed LED Multiple 71W 2800K 120-277V

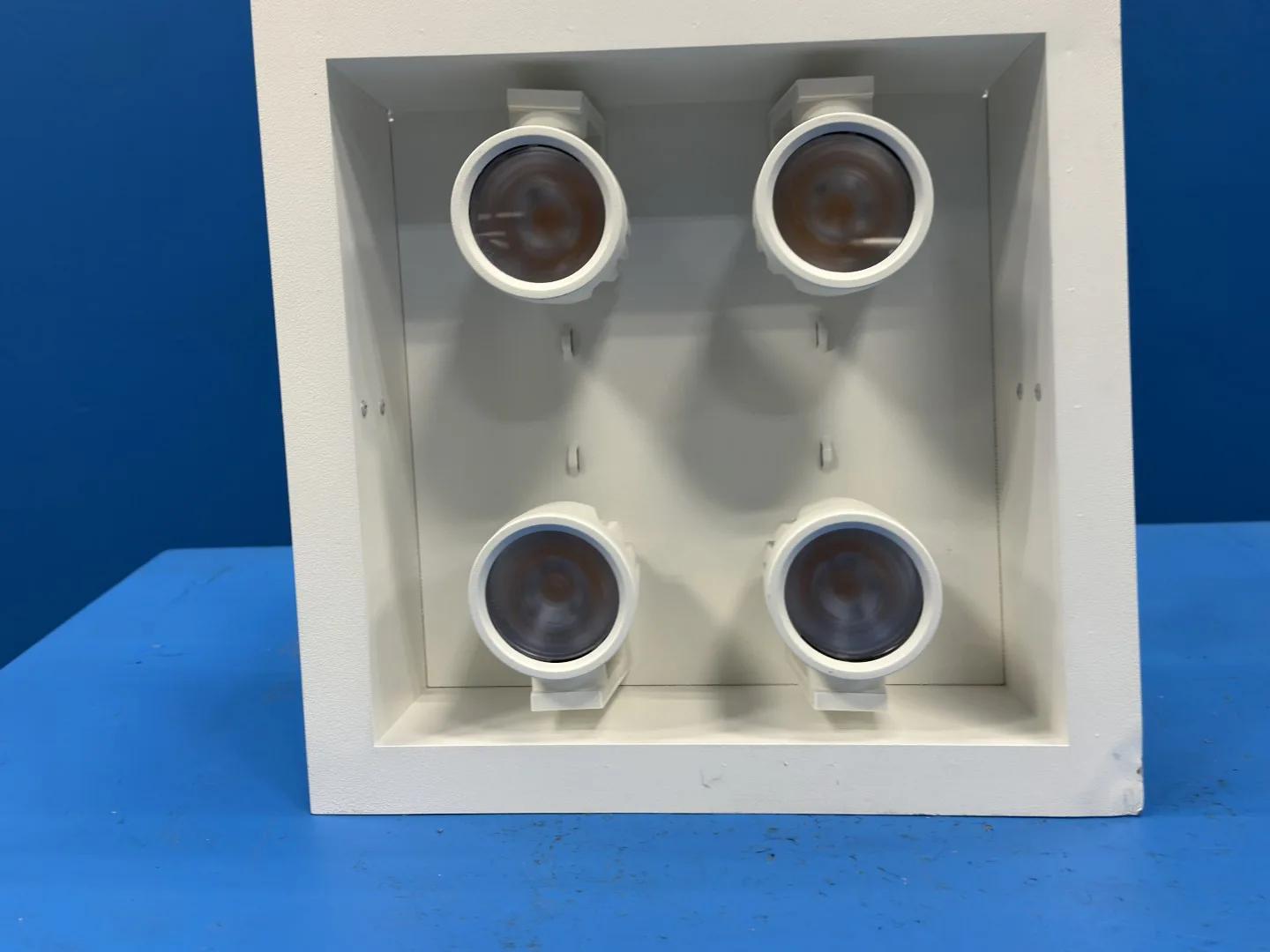

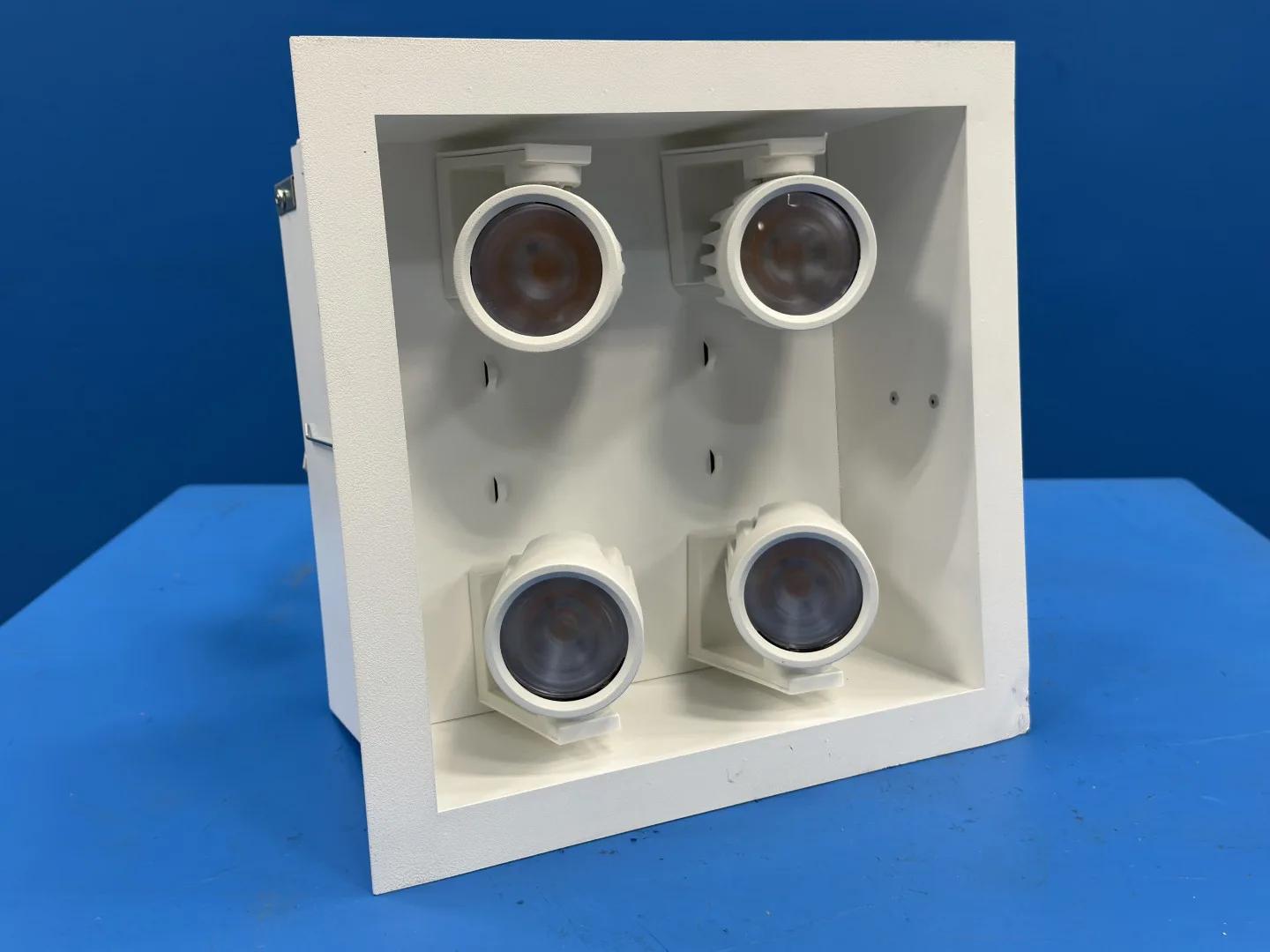

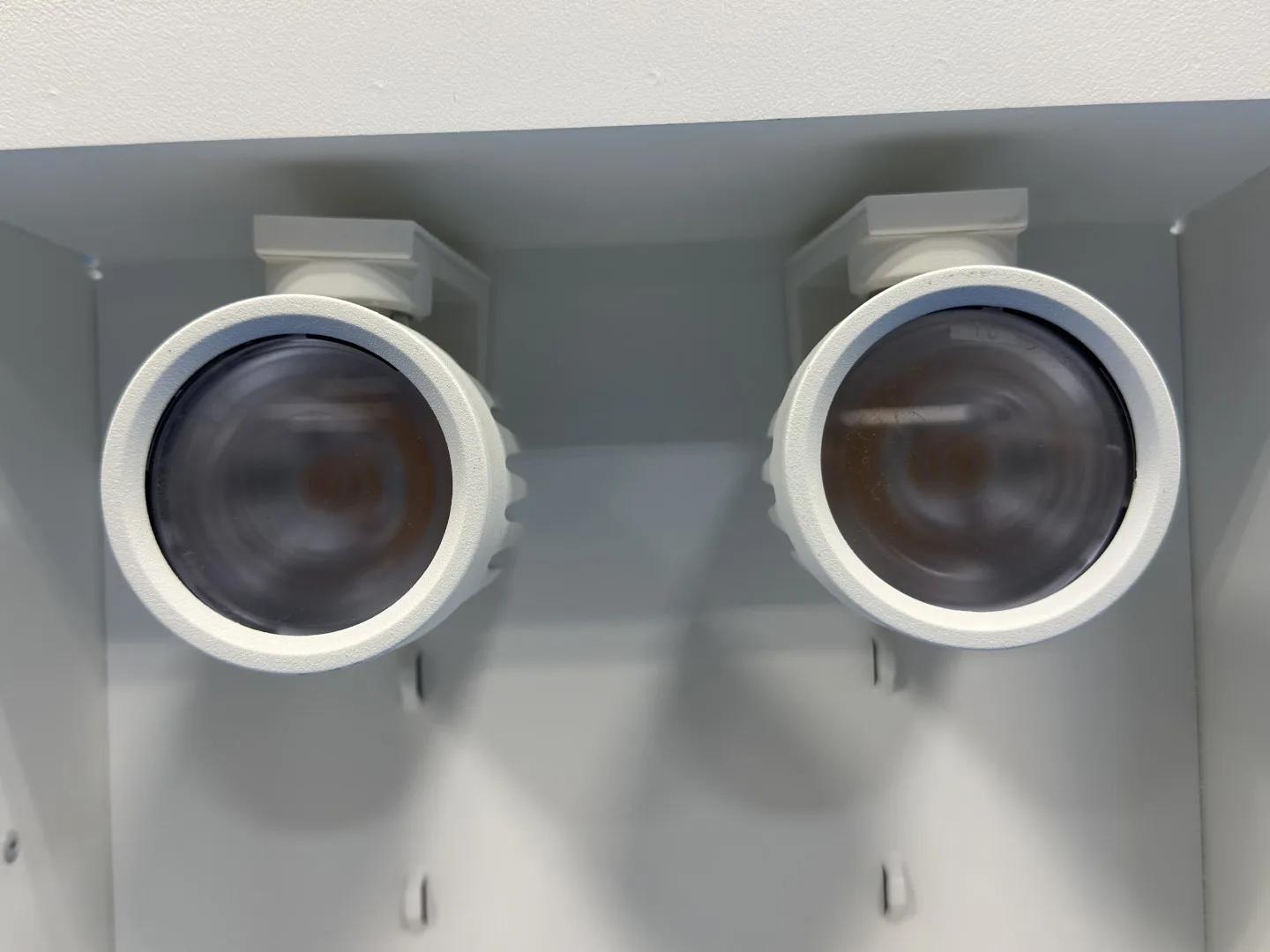

This is a GE Lumination LMM Series recessed multiple LED luminaire, catalog number LMMQRA009NF9WWVQTRWHTE, a four head 2x2 fixture from GE Lighting Solutions, now Current Lighting. The LMM line puts adjustable, individually aimed LED heads in a recessed housing so a single ceiling opening can light several displays or focal points.

Reading the catalog code against the current LMM ordering table: QR is the semi-recessed 2x2 head type, A the first generation, 0 the 120-277V driver, 09 the 950 lumen per head package, NF a narrow flood distribution of about 18 degrees, 9 a 90 CRI LED, V 0-10V dimming, Q no added controls, TR trim mounting and WHTE a white finish. The nameplate on this unit lists 120-277 VAC, 0.578 A, 71 W and 2800K, and it is UL Listed. The finishing section is built to be installed only with its matching LMM rough-in section, which Current sells separately.

Lighting designers, electrical contractors and store fit-out crews specify LMM multiples for retail stores, showrooms, galleries, hotel lobbies and restaurants where high color rendering accent light is needed from a clean recessed ceiling.

Available from King Surplus inventory in Del Rio, Texas.

• Product: Lumination LMM Series recessed multiple LED luminaire, 4 head (2x2)
• Catalog Number (nameplate): LMMQRA009NF9WWVQTRWHTE
• Material Number: 93046064
• Input Voltage: 120-277 VAC, 50/60 Hz (nameplate)
• Input Current: 0.578 A (nameplate)
• Wattage: 71 W (nameplate)
• Color Temperature: 2800K (nameplate)
• Catalog Code Decode: LMM Lumination recessed multiples; QR 2x2 head; A 1st generation; 0 120-277V; 09 950 lm per head; NF narrow flood (18 deg); 9 90 CRI; V 0-10V dimming; Q no controls; TR trim mounting; WHTE white finish (WW CCT code not in current sheet; nameplate states 2800K)
• Dimming: 0-10V (label references www.GELighting.com/dimming)
• Installation: Fixture requires matching LMM rough-in section (label: assemble finishing section GE only with rough-in section)
• Listing: UL Listed, C US, E26967
• Country of Origin: Mexico (label)
• Label Date Code: 20-12

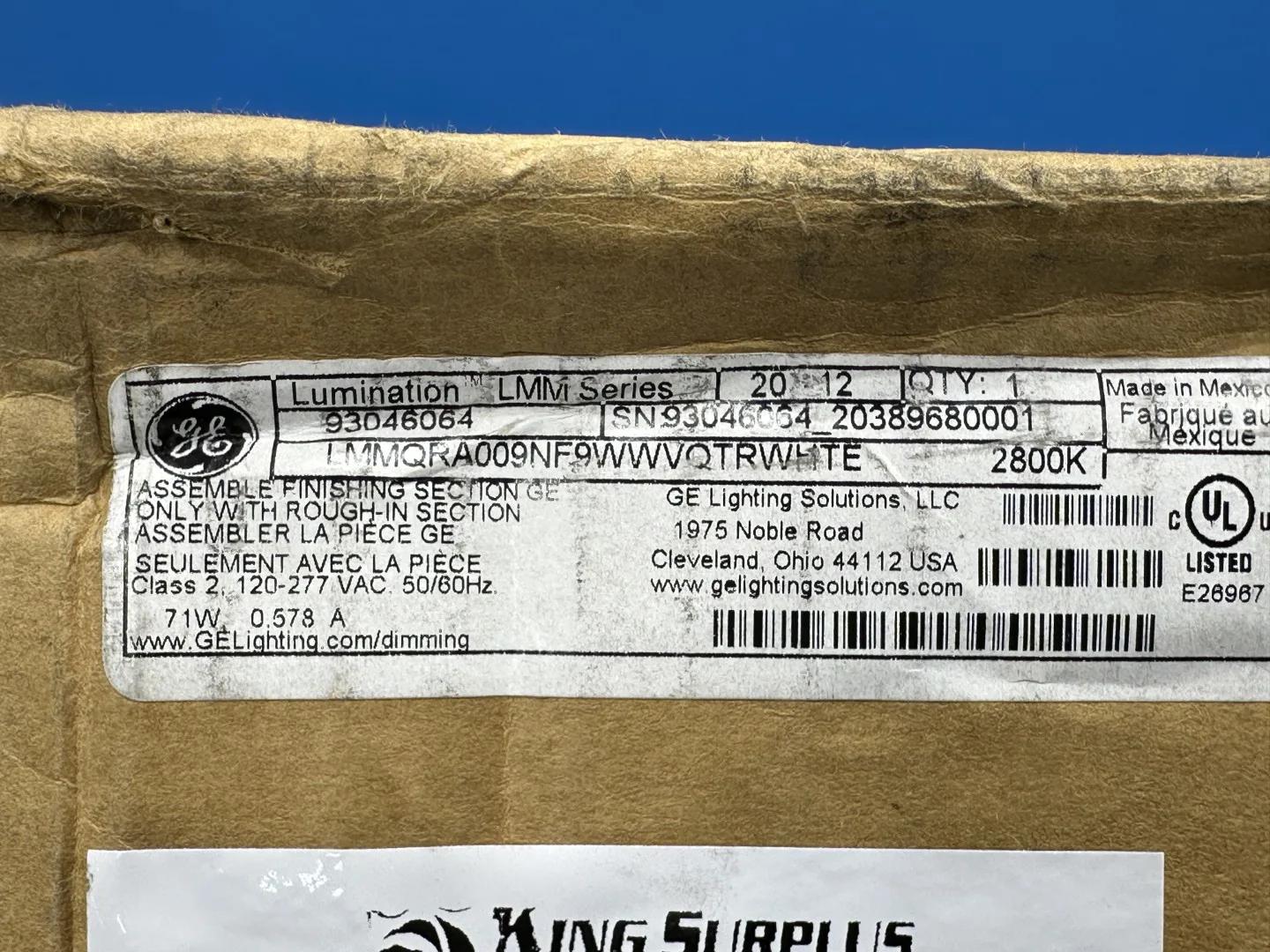

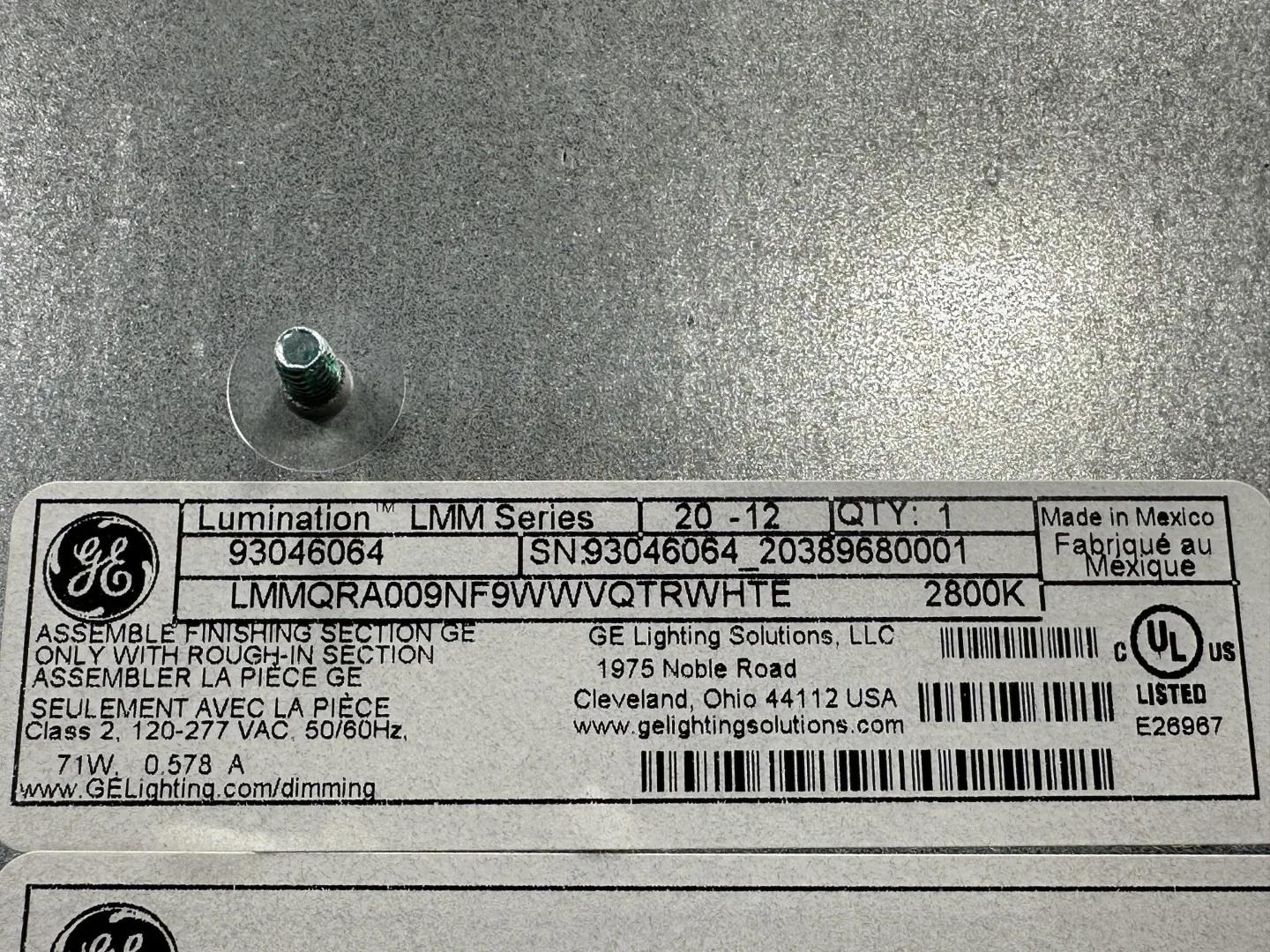

• Spec Basis: Nameplate and carton label photos (GE Lumination LMM Series, LMMQRA009NF9WWVQTRWHTE, 93046064, 120-277 VAC 50/60Hz, 0.578 A, 71W, 2800K, UL LISTED C US E26967, Made in Mexico, GE Lighting Solutions LLC Cleveland OH); Current Lighting Lumination Montage Series Recessed Multiples 2x2 spec sheet IND386 Rev 04/20/23, ordering code table (https://cdn.currentlighting.com/site/specsheet/IND386-Lumination-Montage-2x2-Trim-Specsheet.pdf). Nameplate values listed where the current sheet differs.
