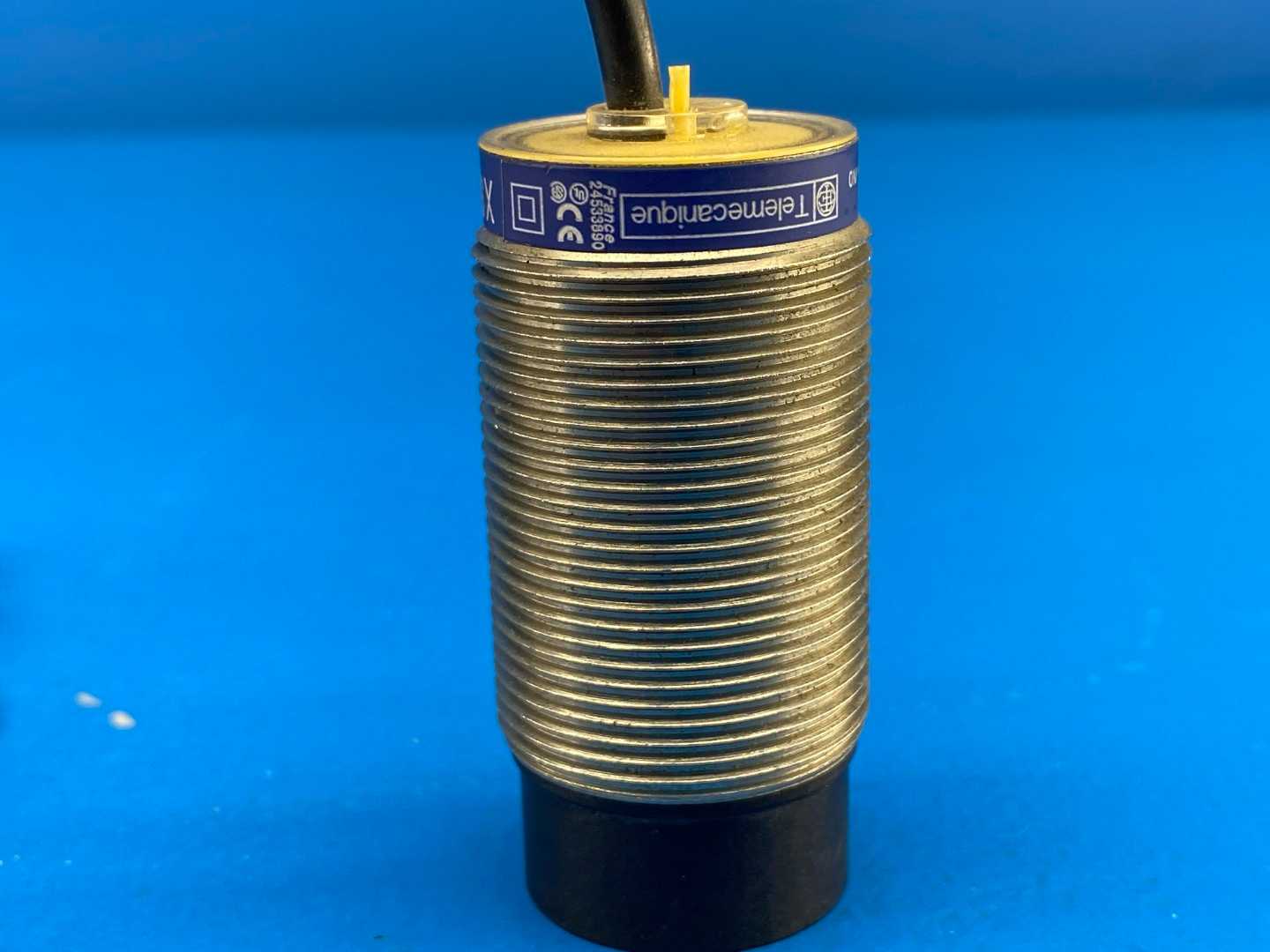

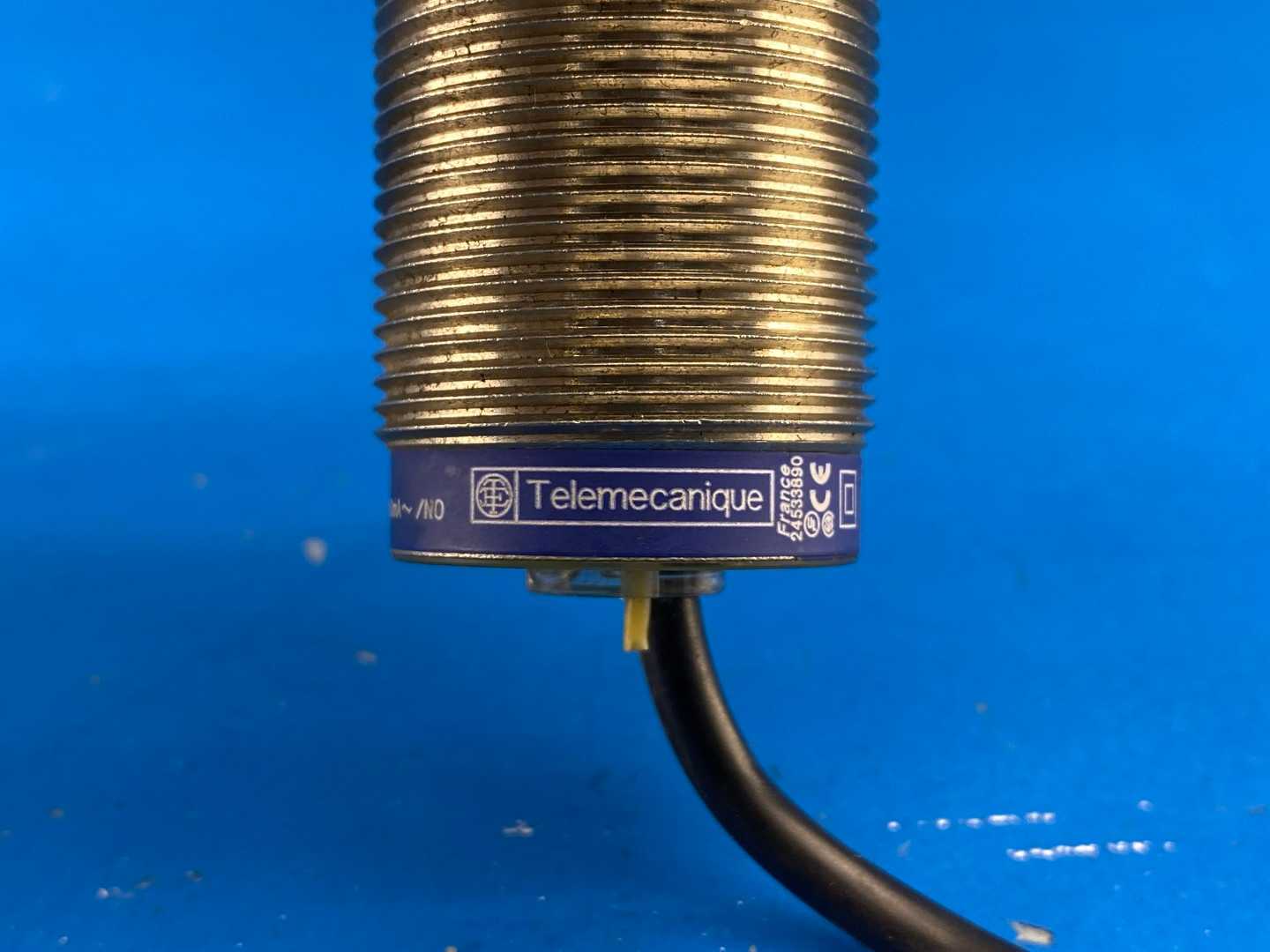

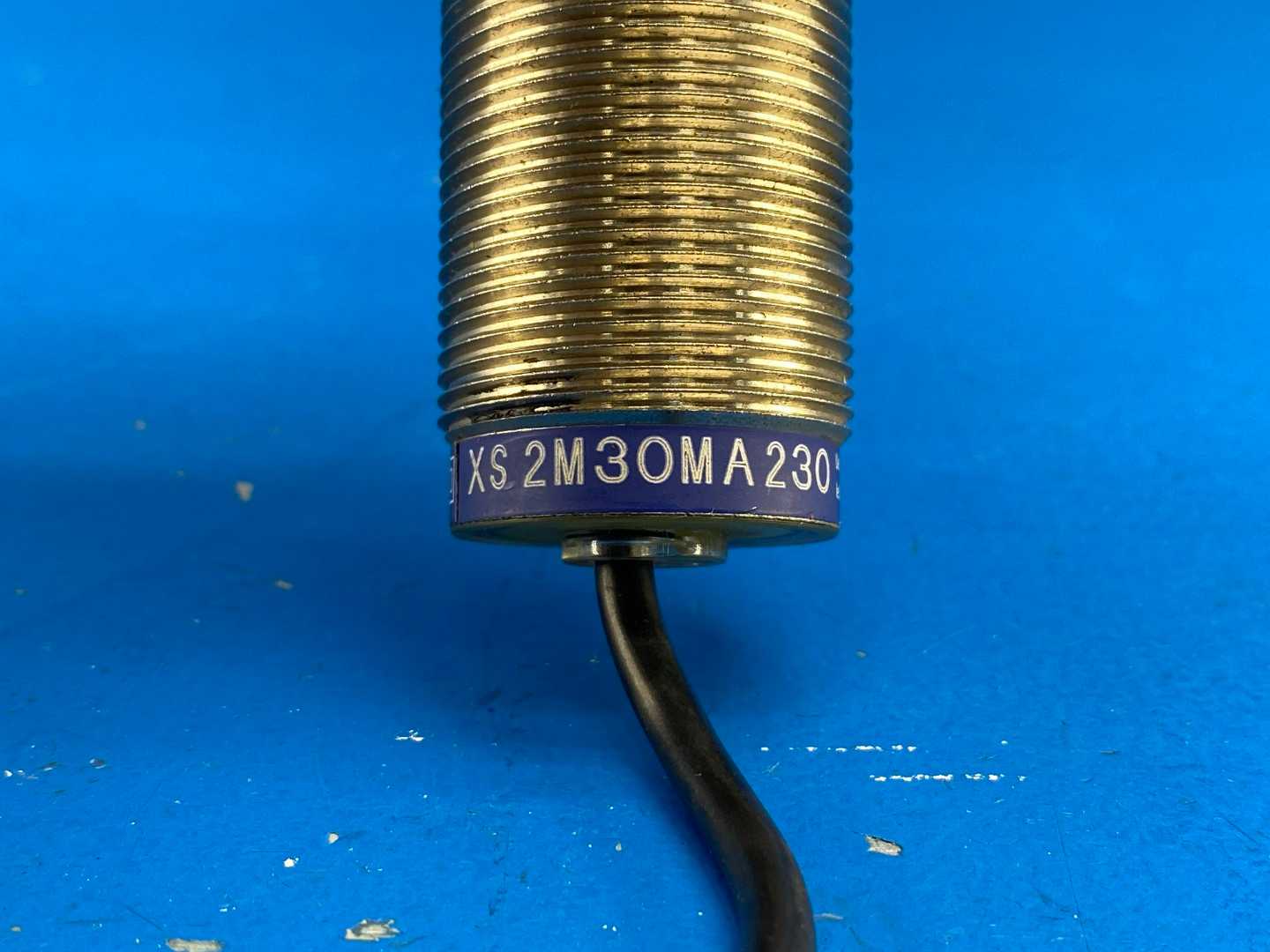

Telemecanique XS2 M30MA230 Inductive Proximity Switch
Key Features of the XS2 M30MA230
Applications and Benefits of Inductive Proximity Switches
$29.50
Free Shipping| Description | Details |
|---|---|
| Available Quantity | 3 |
| Model | XS2 M30MA230 |
| Condition | Used |
| Manufacturer | Telemecanique |
| Asset Number | KSC1290 / 1135 |
| Guarantee or ASIS | 2. WE GUARANTY OUR WORKMANSHIP & OUR WORD ONLY: 14 Day return |
| Inspections - Yellow Tag | 5. Used: Unit looks good to us |
| Packaging Cost | 1.6 6x10 CH $3.00 |
$29.50
Basic Information
Asset #
KSC1290 / 1135
Available Quantity
3
Inspections - Yellow Tag
5. Used: Unit looks good to us
Condition
Used
Guarantee or ASIS
2. WE GUARANTY OUR WORKMANSHIP & OUR WORD ONLY: 14 Day return
Factory Information

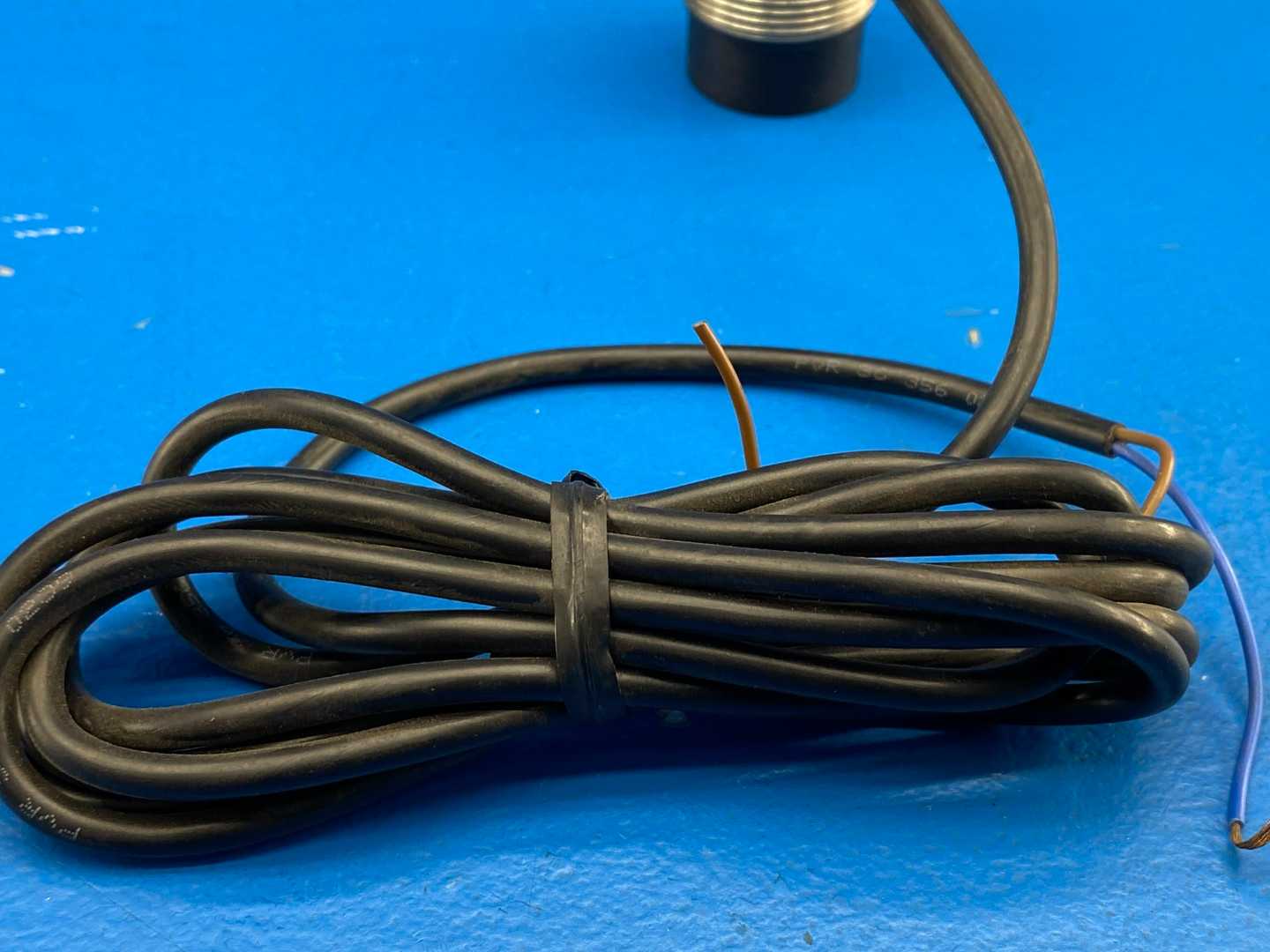

Brand: Telemecanique Sensors Model: XS2 M30MA230 Product Type: Inductive Proximity Switch **Electrical Specifications:** - Operating Voltage: 230V AC - Output Type: Normally Open (NO) - Switching Frequency: 25 Hz - Load Current: 500 mA - Power Consumption: =10 VA - Protection Type: Overvoltage and Short-Circuit Protection **Mechanical Specifications:** - Housing Material: Metal - Housing Size: M30 - Thread Size: M30 x 1.5 - Sensing Distance: 15 mm - Connection Type: Cable Connection - Cable Length: 2 meters - Mounting Type: Flush/Non-Flush **Environmental Specifications:** - Operating Temperature Range: -25°C to +70°C - Degree of Protection: IP67 (Dust-tight & Waterproof) - Shock and Vibration Resistance: IEC 60947-5-2 Standards **Compliance and Certifications:** - Standards Compliance: IEC 60947-5-2 - CE Marked - RoHS Compliant
Specifications
Packaging fees
Packaging Cost
1.6 6x10 CH $3.00
