Danfoss 120Z5042 Belt Type Crankcase Heater, 70W, 575V
120Z5042 Heater Specifications: Wattage & Voltage
Compressor Fitment for Danfoss 120Z5042
| Description | Details |
|---|---|
| Available Quantity | 1 |
| Model | 120Z5042 |
| Condition | New |
| Manufacturer | Danfoss |
| Asset Number | KSC1230 / 1226 |
| Guarantee or ASIS | 2. WE GUARANTY OUR WORKMANSHIP & OUR WORD ONLY: 14 Day return |
| Inspections - Yellow Tag | 1.1 Appears Unused no box |
| Packaging Cost | 1.6 6x10 CH $3.00 |
$69.95
Basic Information
Asset #
KSC1230 / 1226
Available Quantity
1
Inspections - Yellow Tag
1.1 Appears Unused no box
Condition
New
Guarantee or ASIS
2. WE GUARANTY OUR WORKMANSHIP & OUR WORD ONLY: 14 Day return
Item Description

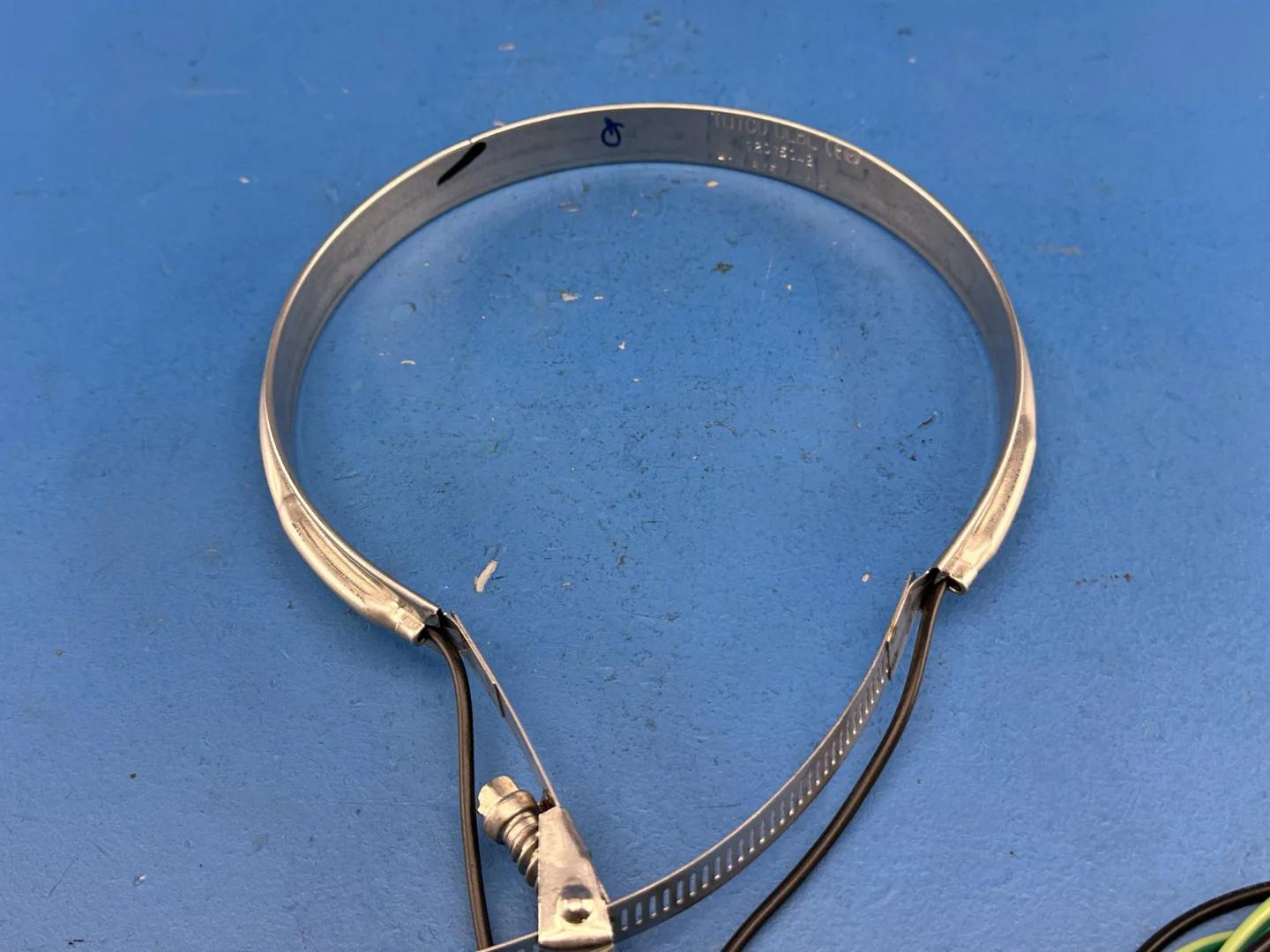

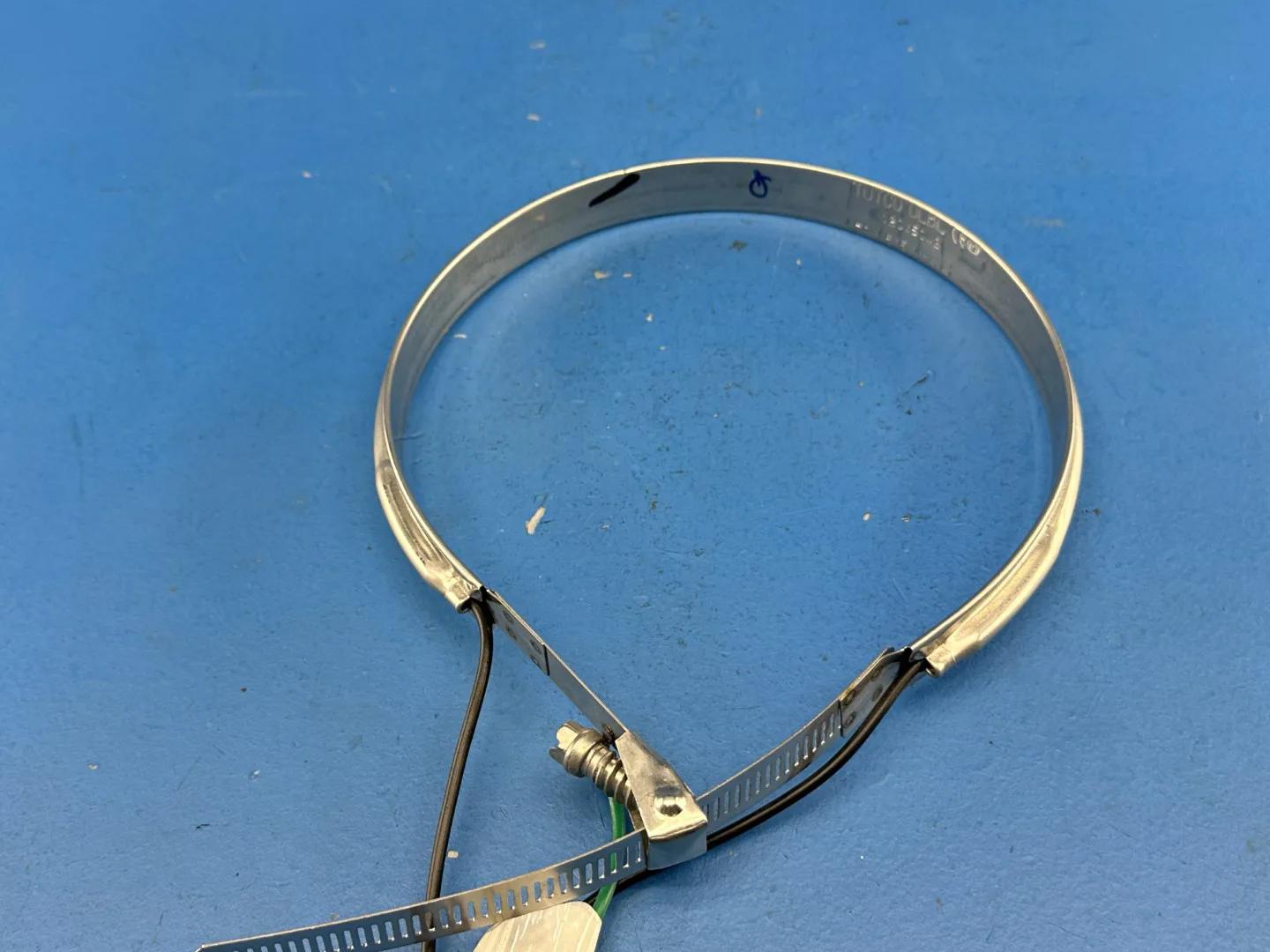

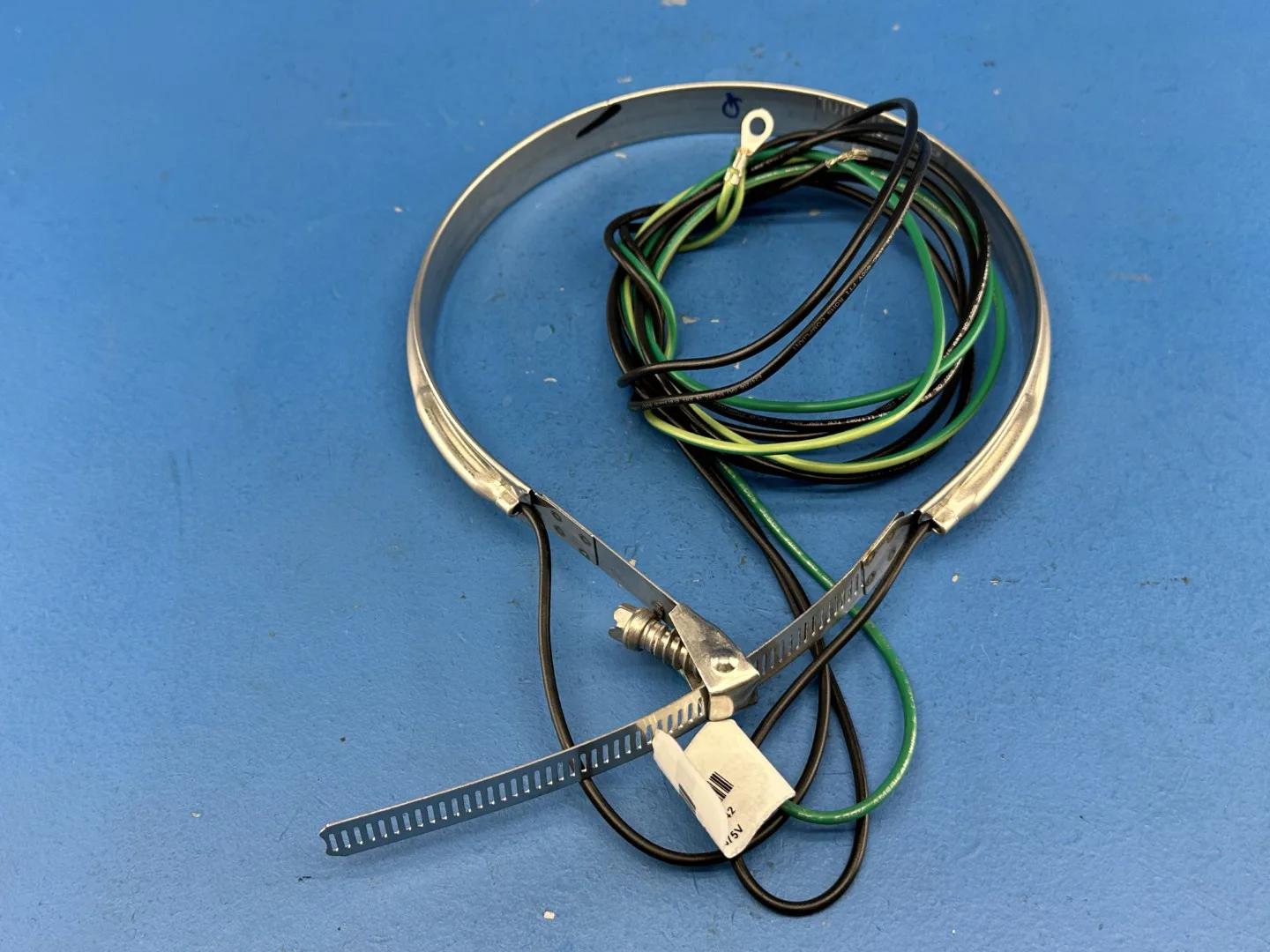

The Danfoss 120Z5042 is a 70 watt, 575 volt belt type crankcase heater, also called a belly band heater, listed by Danfoss for its MLZ and MLM 015, 019, 021 and 026 refrigeration scroll compressors. The heater label carries the TUTCO name, the heating element maker, with the Danfoss code number 120Z5042.
A belt heater is a flexible band clamped around the lower compressor shell at the oil sump. During off cycles it keeps the oil warmer than the rest of the system, so refrigerant does not migrate into and dilute the crankcase oil. That prevents oil foaming, liquid slugging and bearing wash out when the compressor restarts, especially in cold ambient conditions and on systems with long off periods.
Danfoss lists UL, CE and UKCA approvals for the part. It is used by refrigeration contractors and equipment builders on walk-in coolers and freezers, condensing units and commercial refrigeration systems running Danfoss MLZ or MLM compressors on 575 volt service, which is common in Canada.
Available from King Surplus inventory in Del Rio, Texas.
Factory Information
- Product: Belt type crankcase heater
- Danfoss Code Number: 120Z5042
- Power: 70 W (label and Danfoss)
- Voltage: 575V (label and Danfoss)
- Current: 0.12 A (calculated from 70 W at 575V)
- Approvals: UL, CE, UKCA (Danfoss); UL recognized component mark on label
- Compressor Compatibility: Danfoss MLZ/MLM 015-019-021-026
- Net Weight: 290 g (Danfoss)

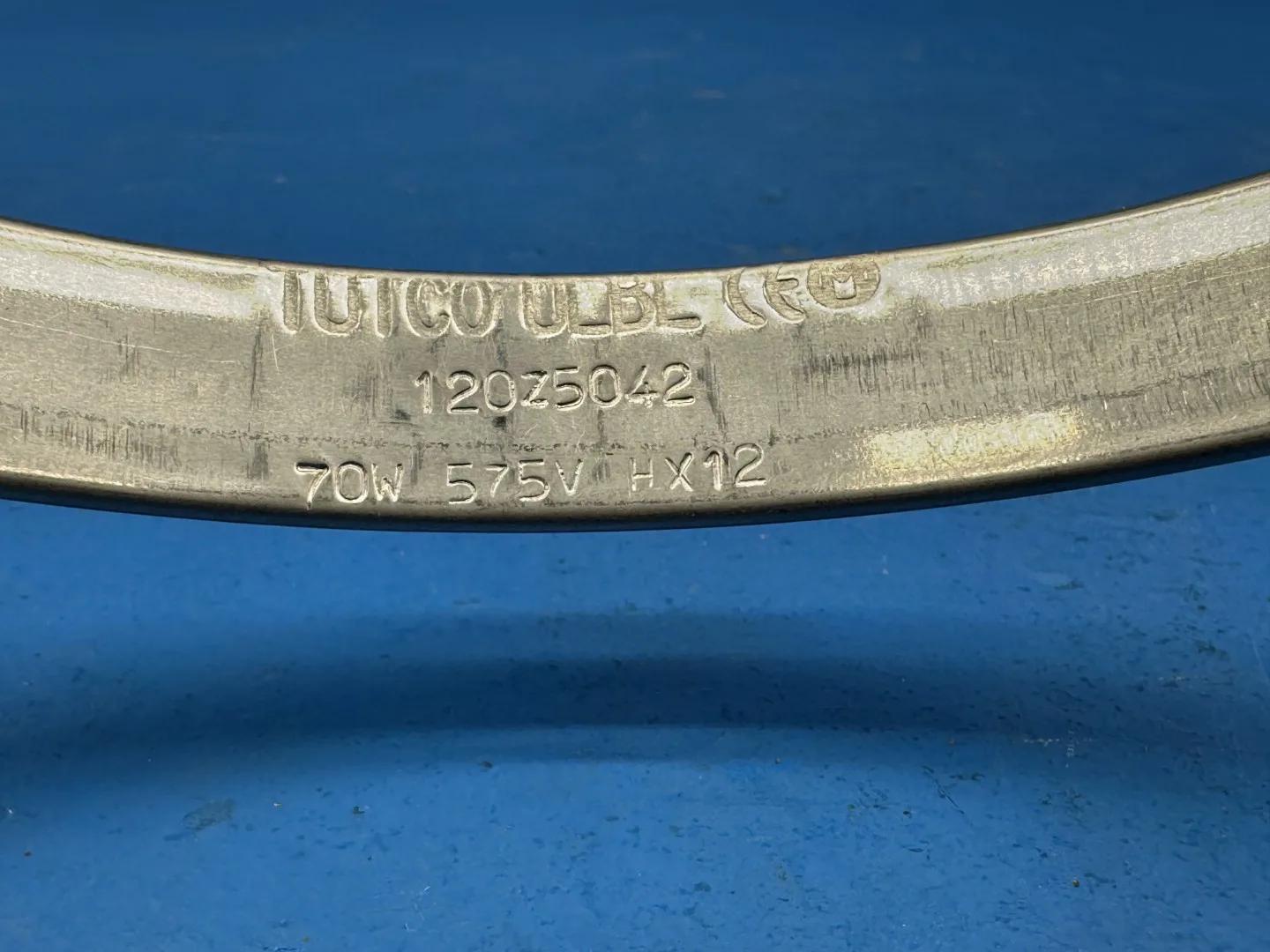

- Heater Label Maker Name: TUTCO, label marking HX12

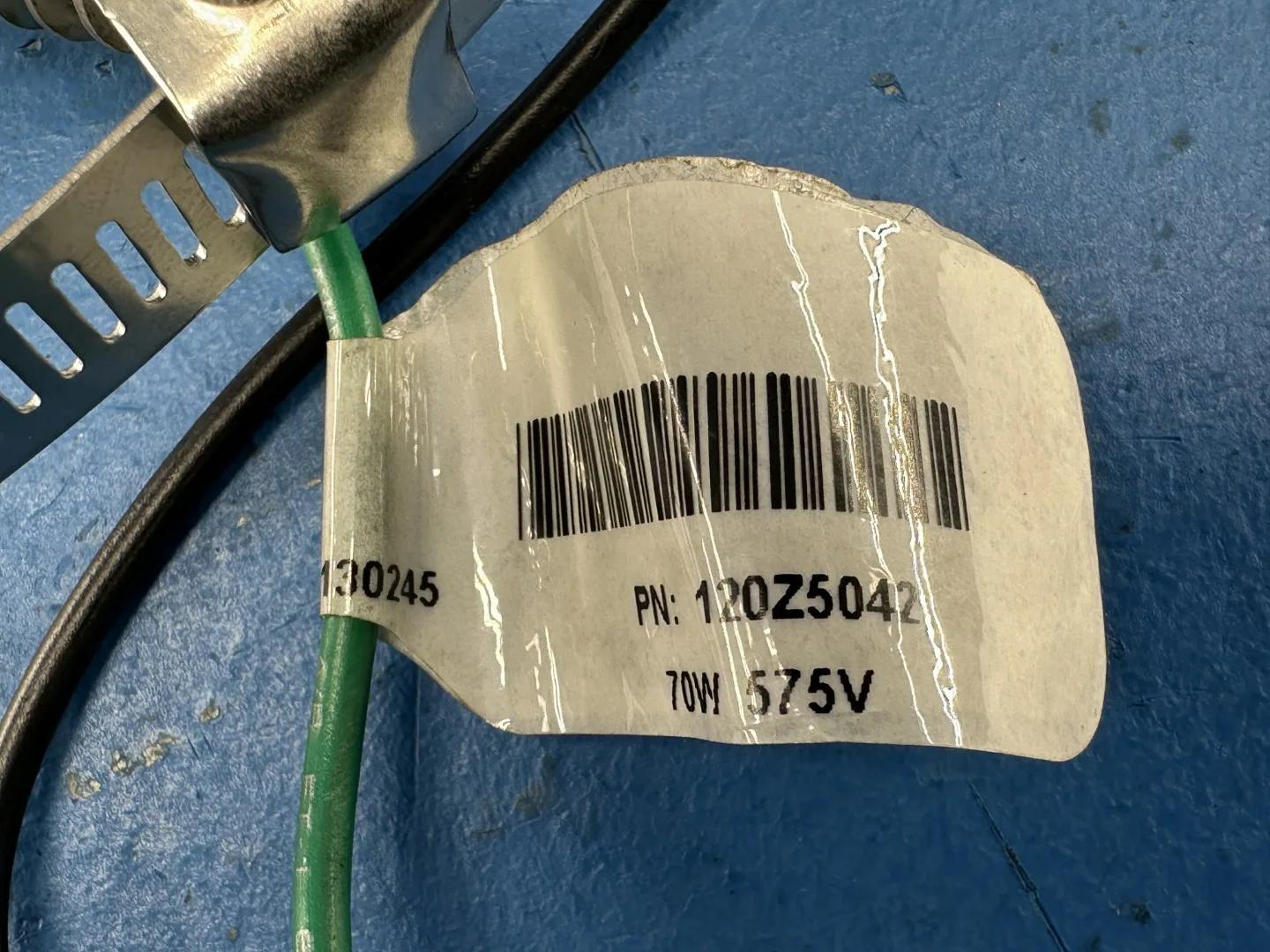

- Spec Basis: heater label photo (TUTCO, UR mark, 70W 575V HX12, PN: 120Z5042); Danfoss product store page for 120Z5042 belt type crankcase heater (store.danfoss.com, Crankcase heater, Belt heater, 120Z5042)
