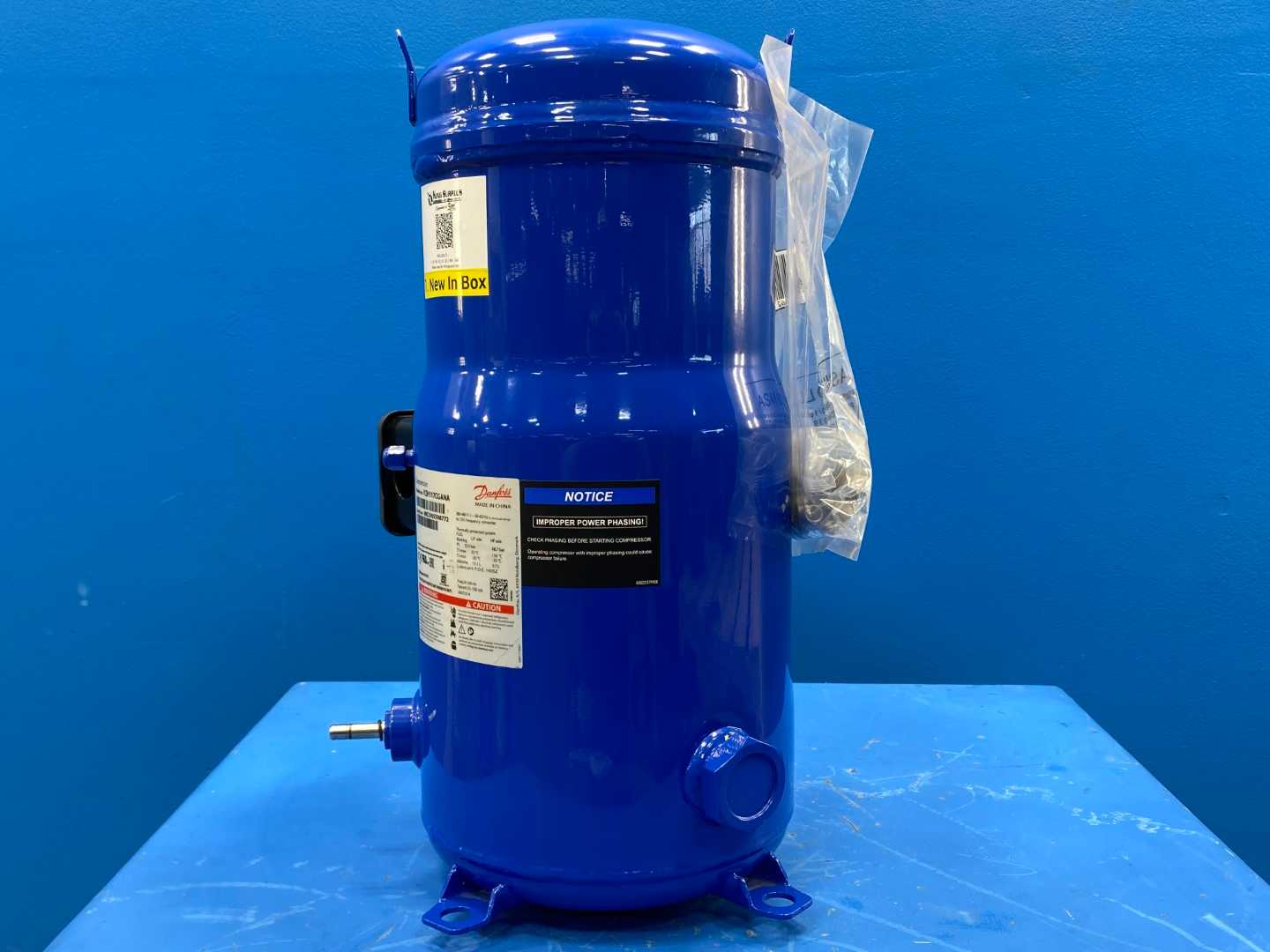

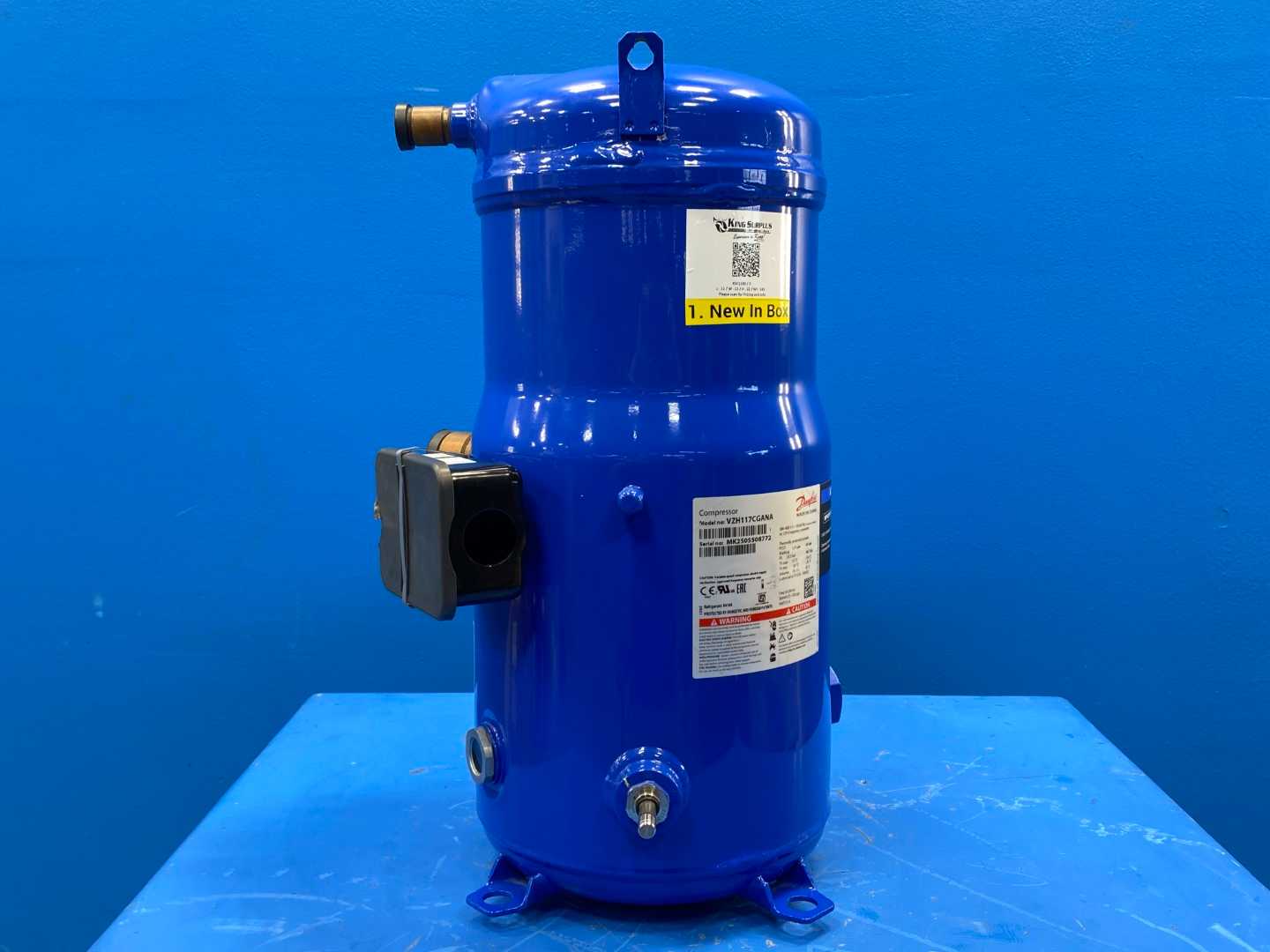

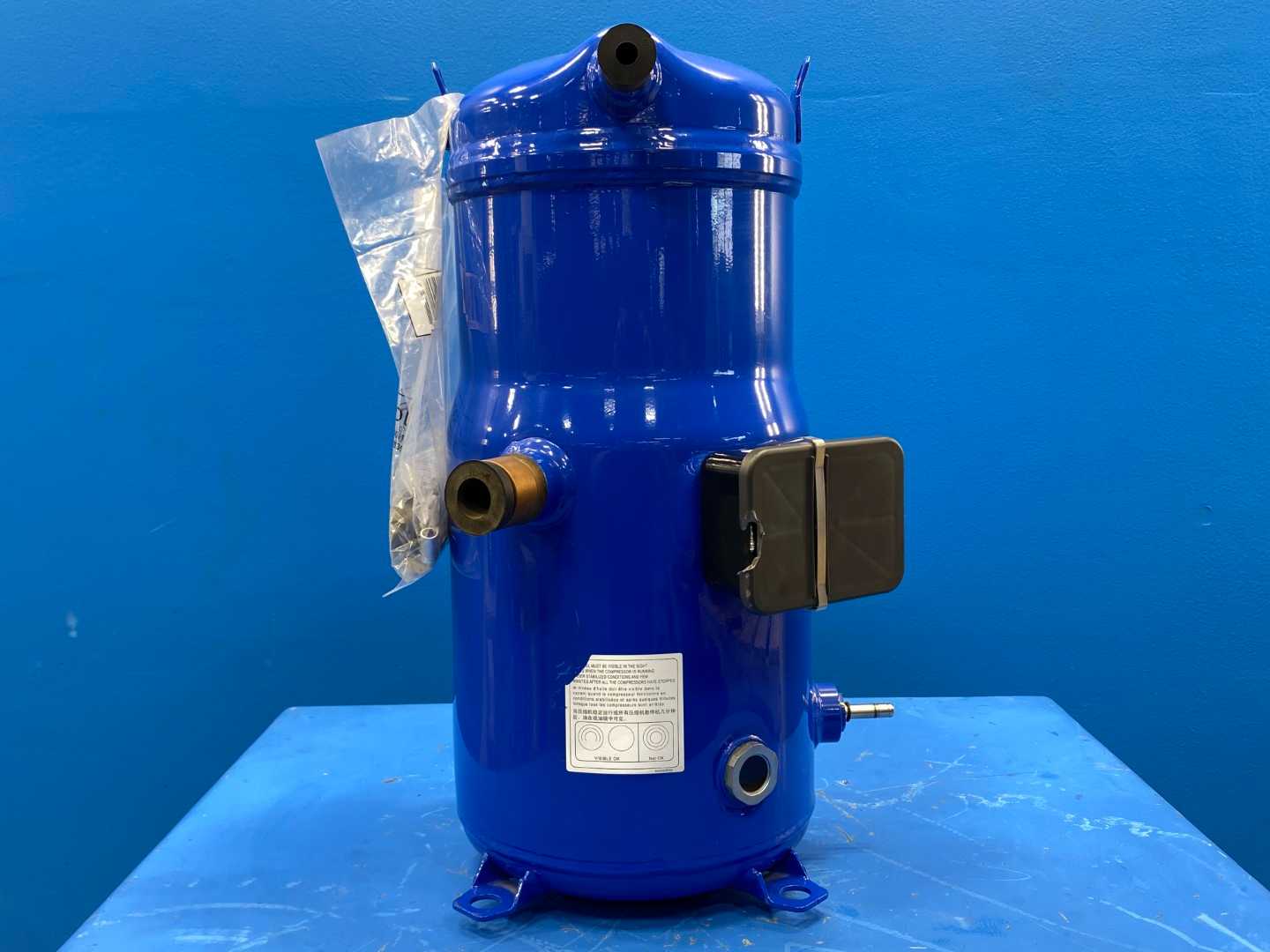

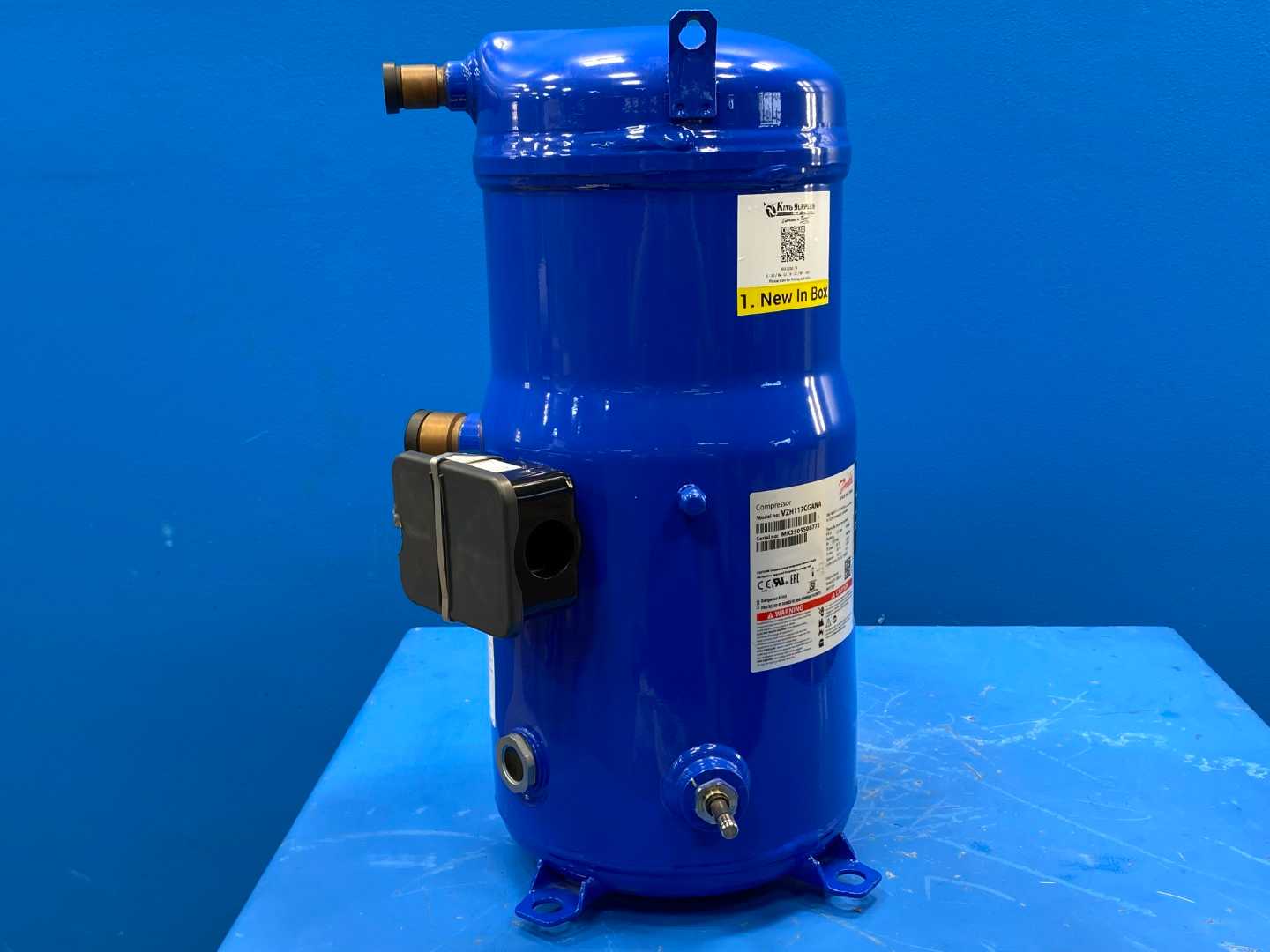

Danfoss Inverter Scroll Compressor VZH117CGANA 120G0226 8Tons
$2,495.00
| Description | Details |
|---|---|
| Available Quantity | 1 |
| Model | VZH117CGANA |
| Condition | New |
| Manufacturer | Danfoss |
| Asset Number | KSC1230 / 3 |
| Guarantee or ASIS | 1. HIGH CONFIDENCE ITEM: We will offer a 100% 14 Day money back less S&H. |
| Inspections - Yellow Tag | 1. New in Box |
| Packaging Cost | 2.2 Pine Pallet $35 |
$2,495.00
Item Description
Inspection Report
Basic Information
Item Description
Introducing the Danfoss Inverter Scroll Compressor VZH117CGANA 120G0226 the key to enhanced efficiency for cooling and heating systems. This 8-ton powerhouse ensures quality, reliability, and superior performance, representing the evolution of compressor technology. The cutting-edge inverter feature adjusts the compressor's output in real time to meet your specific requirements, ensuring optimal energy usage and improved overall system performance. By varying the speed of its operation, it reduces energy consumption, saving you money on utility bills, making it a cost-efficient choice in the long run. Known for its durability and reliability, the Danfoss compressor guarantees a long lifespan with minimal maintenance costs. Invest in the Danfoss Inverter Scroll Compressor and experience a performance boost in your systems like never before. An efficient, cost-saving solution that doesnt compromise on quality or performance now that's worth investing in!
Item Description
Inspection Report
Introducing the Danfoss Inverter Scroll Compressor VZH117CGANA 120G0226 the key to enhanced efficiency for cooling and heating systems. This 8-ton powerhouse ensures quality, reliability, and superior performance, representing the evolution of compressor technology. The cutting-edge inverter feature adjusts the compressor's output in real time to meet your specific requirements, ensuring optimal energy usage and improved overall system performance. By varying the speed of its operation, it reduces energy consumption, saving you money on utility bills, making it a cost-efficient choice in the long run. Known for its durability and reliability, the Danfoss compressor guarantees a long lifespan with minimal maintenance costs. Invest in the Danfoss Inverter Scroll Compressor and experience a performance boost in your systems like never before. An efficient, cost-saving solution that doesnt compromise on quality or performance now that's worth investing in!
Read More ▼
Factory Information
Product details
| Gross weight | 68 Kilogram |
| Net weight | 64.922 Kilogram |
| Volume | 0.1 Cubic meter |
| EAN | 5702424543693 |
| Approval | CE UL UKCA |
| Brand technique | Scroll compressor |
| Capacity control | Inverter |
| China RoHS compliance | Out of scope |
| Colour | Blue |
| Compressor power supply [V] | 380-480/3/50-60 |
| Configuration code | Single |
| Connection type | Brazed |
| Description | VZH117CG |
| Diameter [mm] | 243 mm |
| Discharge connection height [mm] | 508 mm |
| Discharge connection pipe size [in] | 7/8 in |
| Discharge connection size [in] | 7/8 in |
| Drawing number | 8560026c |
| Economizer | No |
| EU RoHS compliance | Yes with exemptions |
| EU RoHS exemption clause | 6(a), 6(a)-I, 7(a), 7(c)-I, 8(b), 9(b) |
| Family | VZH |
| Fitting standard | ODF |
| Frequency [Hz] | 25 - 100 |
| Gauge port HP | None |
| Gauge port LP | Schrader |
| Glass mounting | Threaded |
| Glass torque [Nm] | 50 N-m |
| High Side TS Max | 150 °C |
| High Side TS Min | -35 °C |
| High Side Volume | 0.7 L |
| High value of nominal voltage at 50Hz [V] | 480 V |
| High value of nominal voltage at 60Hz [V] | 480 V |
| High value of voltage range at 50Hz [V] | 528 V |
| High value of voltage range at 60Hz [V] | 528 V |
| In scope of WEEE and contain batteries | No |
| IP protection class | IP54 (with cable gland) |
| Low Side TS Max | 55 °C |
| Low Side TS Min | -35 °C |
| Low Side Volume | 15.1 L |
| Low value of nominal voltage at 50Hz [V] | 380 V |
| Low value of nominal voltage at 60Hz [V] | 380 V |
| Low value of voltage range at 50Hz [V] | 342 V |
| Low value of voltage range at 60Hz [V] | 342 V |
| Max pressure (PS) - high side | 48.7 bar |
| Max pressure (PS) - low side | 33.3 bar |
| MMT | 55 A |
| Model number | VZH117CGANA |
| Motor protection | Motor protection by frequency converter |
| Mounting torque [Nm] | 21 N-m |
| Network power supply [V/Ph/Hz] | 380-415/3/50 460/3/60 |
| Number of starts per hour [Max] | 12 |
| Oil charge [L] | 4.1 L |
| Oil equalization | 1-3/4'' Rotolock |
| Oil level switch port | No |
| Oil reference | 160SZ |
| Oil type | POE |
| Packing format | Industrial pack |
| Packing quantity | 8 |
| Phase | 3 |
| Power connections | Screw 4.8 mm |
| Product group | Hermetic compressors |
| Product Name Description | Scroll compressor VZH |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Refrigerant charge [kg] [Max] | 8 kg |
| Refrigerants | R410A |
| RLA | 44 A |
| Rotational speed at 50Hz [rpm] | 3000 rpm |
| Rotational speed at 60Hz [rpm] | 3600 rpm |
| SCIP dossier no. | 80036420-9a29-497b-9cf4-a8ba2dc633c2 |
| SCIP dossier product name | VZH088-117 |
| Segment usage | Air conditioning |
| Suction connection height [mm] | 277 mm |
| Suction connection material | - |
| Suction connection pipe size [in] | 1 3/8 in |
| Suction connection size [in] | 1 3/8 in |
| Swept volume [cm3] | 116.9 cm³ |
| Technology | Scroll |
| Torque earth [Nm] | 4 N-m |
| Torque power [Nm] | 3 N-m |
| Total height [mm] | 542 mm |
| Type | VZH117 |
| UK RoHS compliance | Out of scope |
| Viscosity [cP] | 32 cP |
| Winding resistance for three-phase compressors with identical windings [Ohm] | 0.08 Ohm |
