Hitachi TFO-K 0.4kW (1/2 HP) 4-Pole 3-Phase Induction Motor, 200-220V (Brother OEM)
TFO-K Motor Specifications: Voltage & Phase
Condition & What's Included
| Description | Details |
|---|---|
| Available Quantity | 1 |
| Model | TFO-K |
| Condition | Used |
| Manufacturer | Hitachi |
| Asset Number | KSCU / 72 / 6 |
| Guarantee or ASIS | 2. WE GUARANTY OUR WORKMANSHIP & OUR WORD ONLY: 14 Day return |
| Inspections - Yellow Tag | 5.3 Used: ASIS |
| Packaging Cost | 1.1 Cardboard $10 |
$119.95
Basic Information
Asset #
KSCU / 72 / 6
Available Quantity
1
Inspections - Yellow Tag
5.3 Used: ASIS
Condition
Used
Guarantee or ASIS
2. WE GUARANTY OUR WORKMANSHIP & OUR WORD ONLY: 14 Day return
Item Description

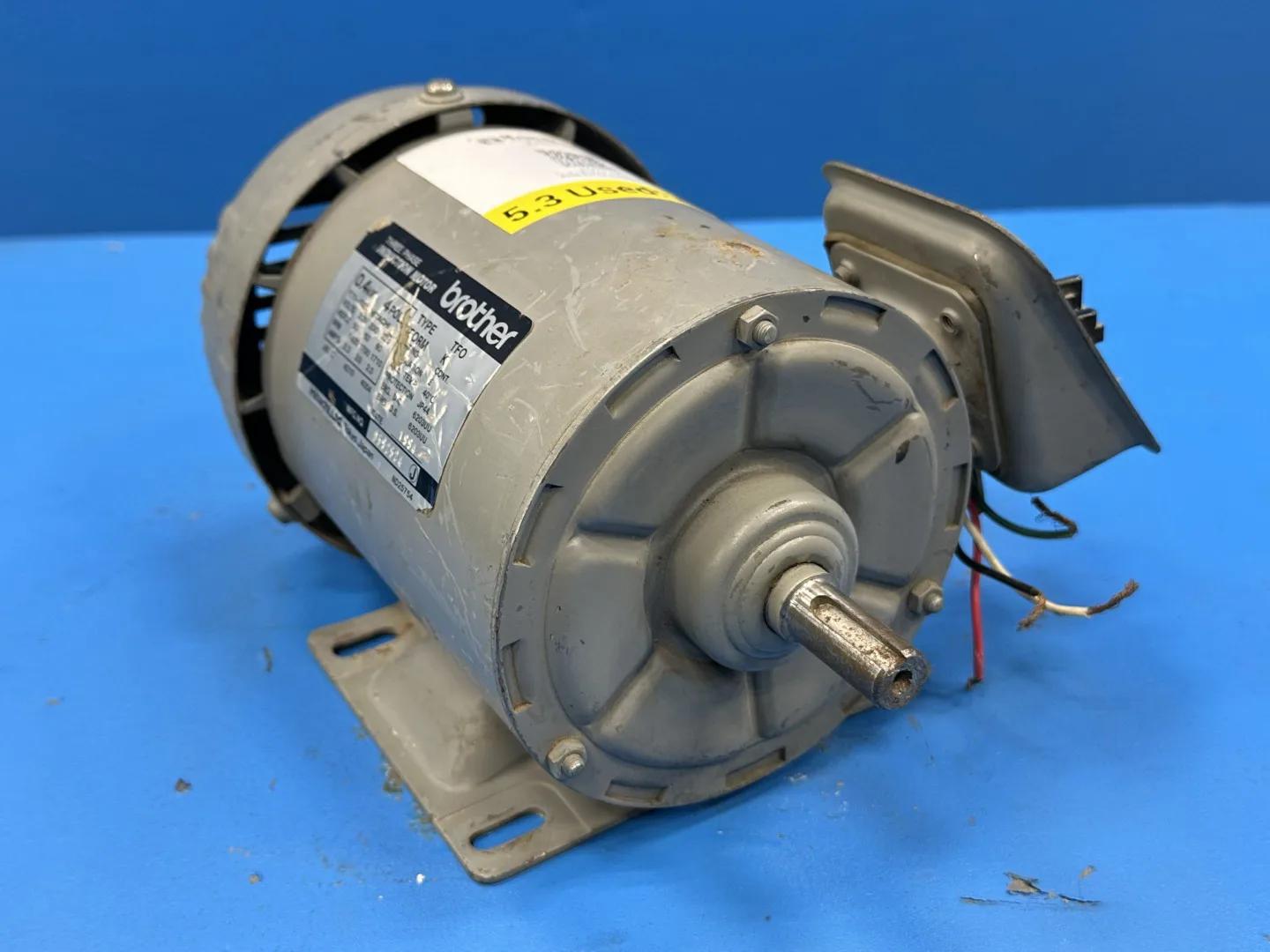

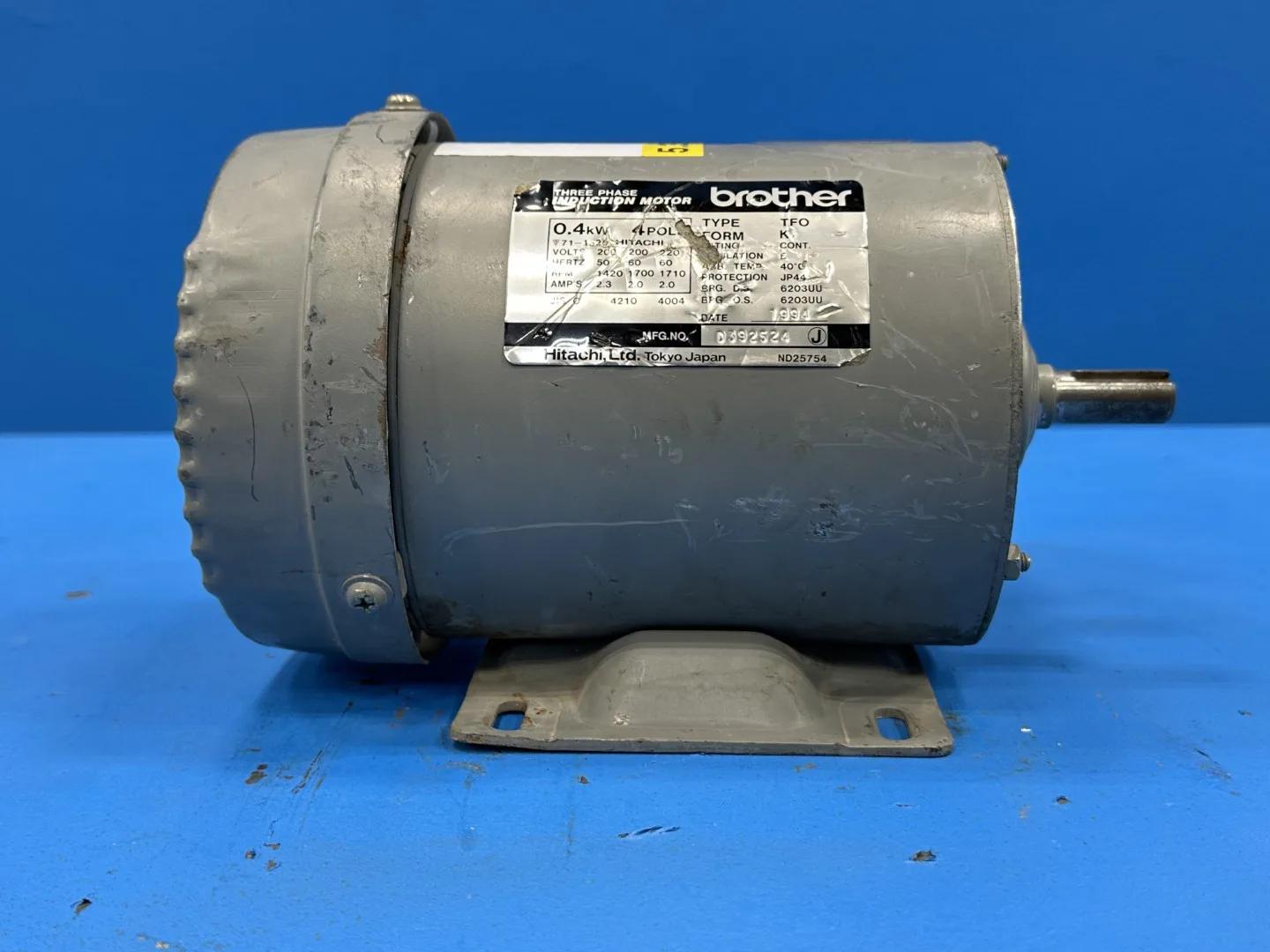

This is a three-phase induction motor manufactured by Hitachi, Ltd. of Tokyo, Japan and labeled for Brother, type TFO, form K. The label carries Brother branding with Hitachi named as the maker, an OEM arrangement common on Japanese industrial machinery. The plate is dated 1994.
The motor is rated 0.4 kW with 4 poles, roughly a half horsepower class machine, and runs on 200 V at 50 Hz or 200 V and 220 V at 60 Hz. Rated speeds are 1420 RPM at 50 Hz and 1700 to 1710 RPM at 60 Hz, with full load current of 2.3 A at 50 Hz and 2.0 A at 60 Hz. It is continuous duty, insulation class E, JP44 protection and rated for a 40 C ambient.
Small foot-mounted motors like this drive coolant pumps, conveyors, fans and machine auxiliaries. The plate lists 6203UU sealed bearings at both ends, useful when matching or servicing an existing unit. Built to JIS C 4210 and JIS C 4004.
Available from King Surplus inventory in Del Rio, Texas.
Factory Information
- Type: TFO
- Form: K
- Motor type: 3-phase induction motor
- Rated output: 0.4 kW (fractional HP class, approx. 0.54 HP by calculation; plate states kW only)
- Poles: 4
- Voltage / frequency: 200 V 50 Hz; 200 V 60 Hz; 220 V 60 Hz
- Speed: 1420 RPM (50 Hz), 1700 RPM (200 V 60 Hz), 1710 RPM (220 V 60 Hz)
- Current: 2.3 A (50 Hz), 2.0 A (60 Hz)
- Rating: Continuous
- Insulation class: E
- Ambient temperature: 40 C
- Protection: JP44
- Bearings: 6203UU drive side and opposite side
- Standards: JIS C 4210, JIS C 4004
- Plate date: 1994
- Label marks: Brother; made by Hitachi, Ltd., Tokyo Japan; label ref ND25754

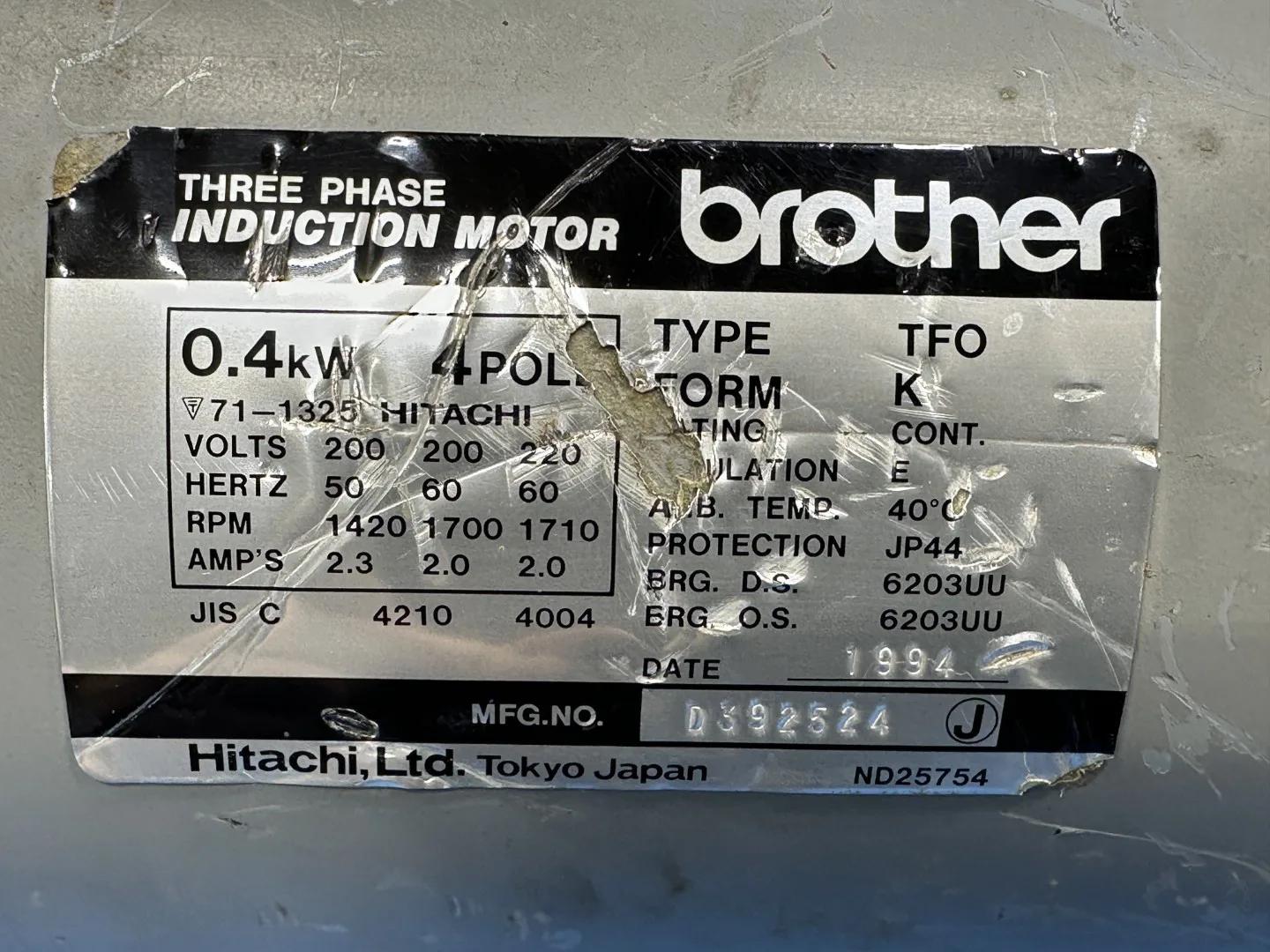

- Spec Basis: nameplate photo (record 18517). No published datasheet found for this Brother-labeled TFO-K unit.
Specifications
Hitachi
TFO-K
D392524
1994
Fractional (Enter in Description)
2.0
10
8
6
3
4
22
KSCU / 72 / 6
