Basic Information


Asset #

KSC1290 / 499

Available Quantity

2

Inspections - Yellow Tag

1. New in Box

Condition

New

Guarantee or ASIS

1. HIGH CONFIDENCE ITEM: We will offer a 100% 14 Day money back less S&H.

Item Description

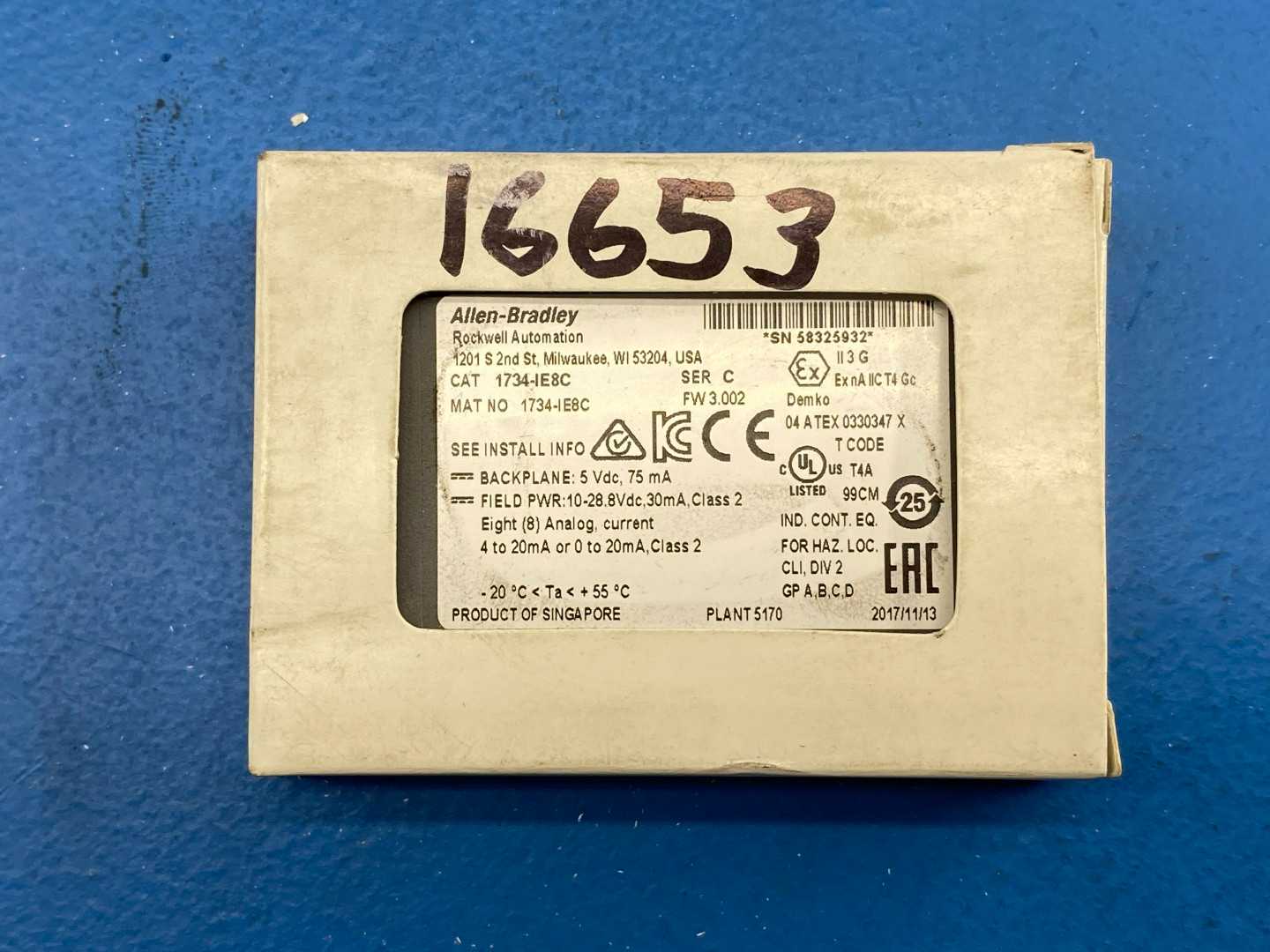

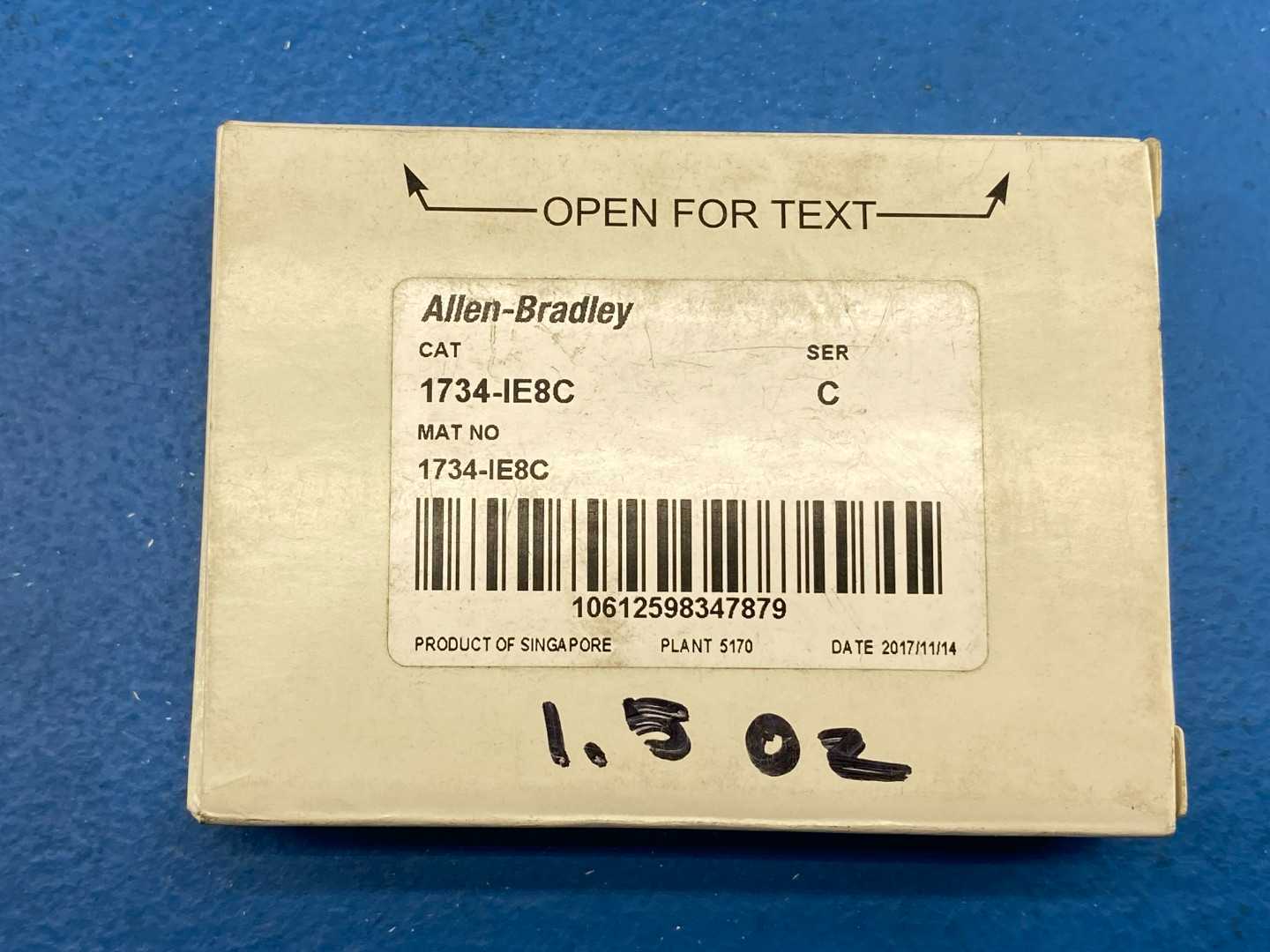

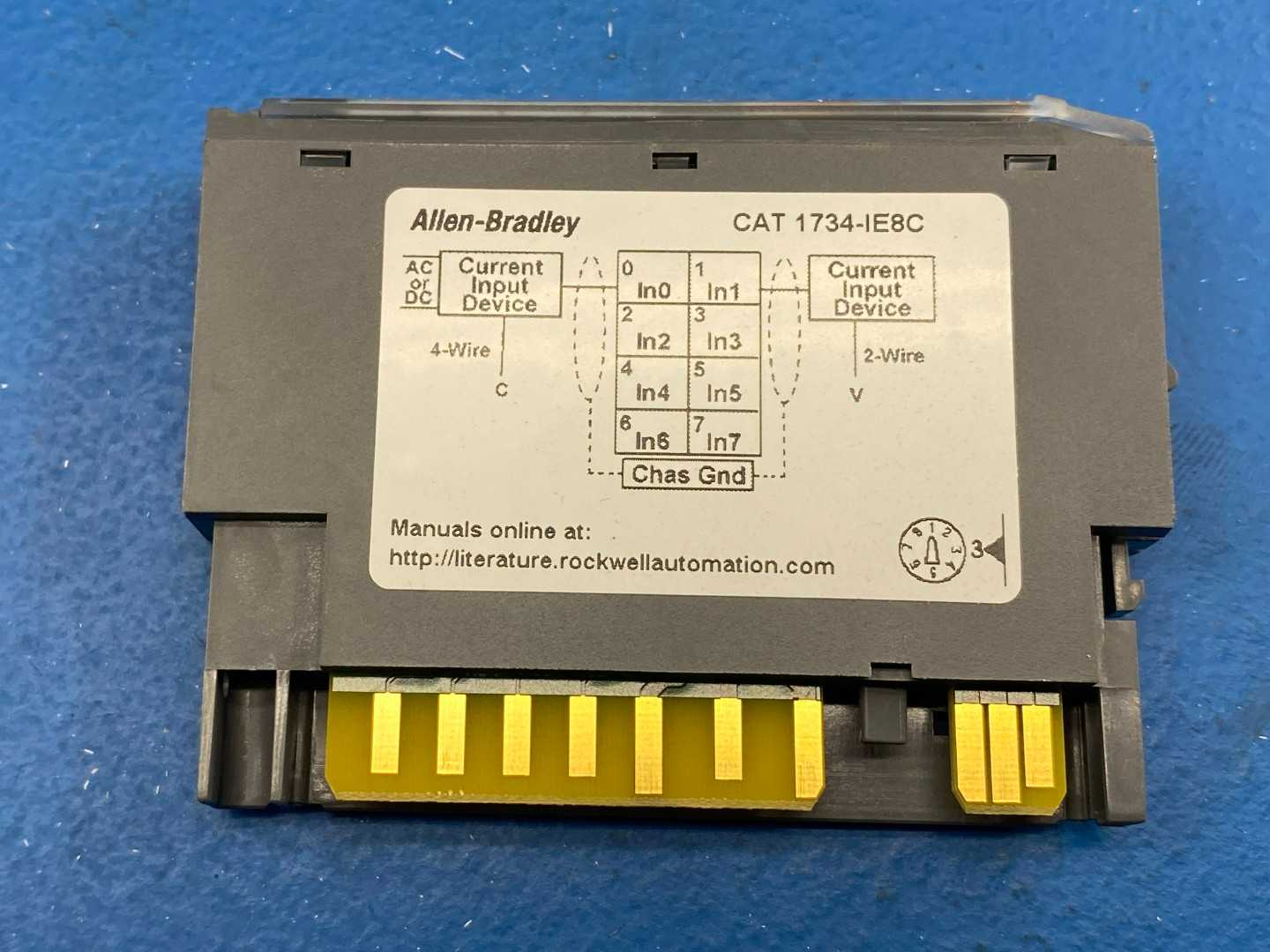

The 1734-IE8C is an analog input by Allen-Bradley that belongs to the POINT IO modules. It has a 16-Bit resolution and accepts analog input range of 0 to 21 mA. The module’s absolute accuracy is 0.1% full scale at 77 degrees Fahrenheit, its input impedance (resistance) is 60 Ohms, and its conversion type is the delta-sigma type. POINT IO analog input modules such as the 1734-IE8C support a variety of features, including scaling to different engineering units, channel-level diagnostics, on-board channel-level data alarming, and to the integer format. The 1734-IE8C module is practically designed and it allows for greater flexibility than other modules with its individually configurable channels, selectable input filters, and over and under-ranged detection and indication functions.

Factory Information


Technical specifications for 1734-IE8C

Manufacturer Rockwell Automation

Brand Allen-Bradley

Part Number/Catalog No. 1734-IE8C

Series POINT I/O

Module Type Analog Input Module

Inputs Eight (8) single-ended, non-isolated

Input Conversion Type Sigma Delta

Signal Type Current

Input Signal Range 4…20 mA 0…20 mA

Input Resolution 16 bits across 0 to 21 mA

Conversion Type Delta Sigma

Absolute Accuracy 0.1% Full Scale @ 25 °C

Data format Signed Integer

Channel-level diagnostics Yes

Resolution 16 bits – over 0…21 mA 0.32 ?A/cnt

UPC 10612598347879

Terminal base 1734-TB3, 1734-TB3S wiring base assembly

Power Dissipation 0.6 W @ 28.8V DC

Thermal Dissipation 2.0 BTU/hr @ 28.8V DC

Specifications

Manufacturer
Allen-Bradley
Model
1734-IE8C Series C
Serial
58325932
Year
2017
HP / AMP / KW / KVA
N/A
Amps
N/A
Length (Inches)
3
Width (Inches)
4
Height (Inches)
1
Phase
N/A
Estimated Packaging Weight
0
Estimated Total Weight
0.08125
Asset Number
KSC1290 / 499

Packaging fees

Packaging Cost

1.6 6x10 CH $3.00

Payment Details

Appraised Value

$239.75

Payment Methods

Payment Types Accepted : Visa , Mastercard , ACH , Wire Transfer , Check (14 Day Hold Before Release) , Cash
